Managing parking availability efficiently is a common challenge for commercial facilities, garages, and controlled access lots. A custom solution built around the DC-25C and DC-60C Parking Garage Space Counter provides a practical and scalable way to display real-time parking space availability with clarity and precision.

This system has been configured specifically to meet the operational needs of Babco Access Solutions, LLC, where the primary objective is to clearly display the number of available parking spaces to incoming drivers. By combining a master control unit with a high-visibility secondary display, the system ensures accurate communication both inside and outside the facility.

How the System Works

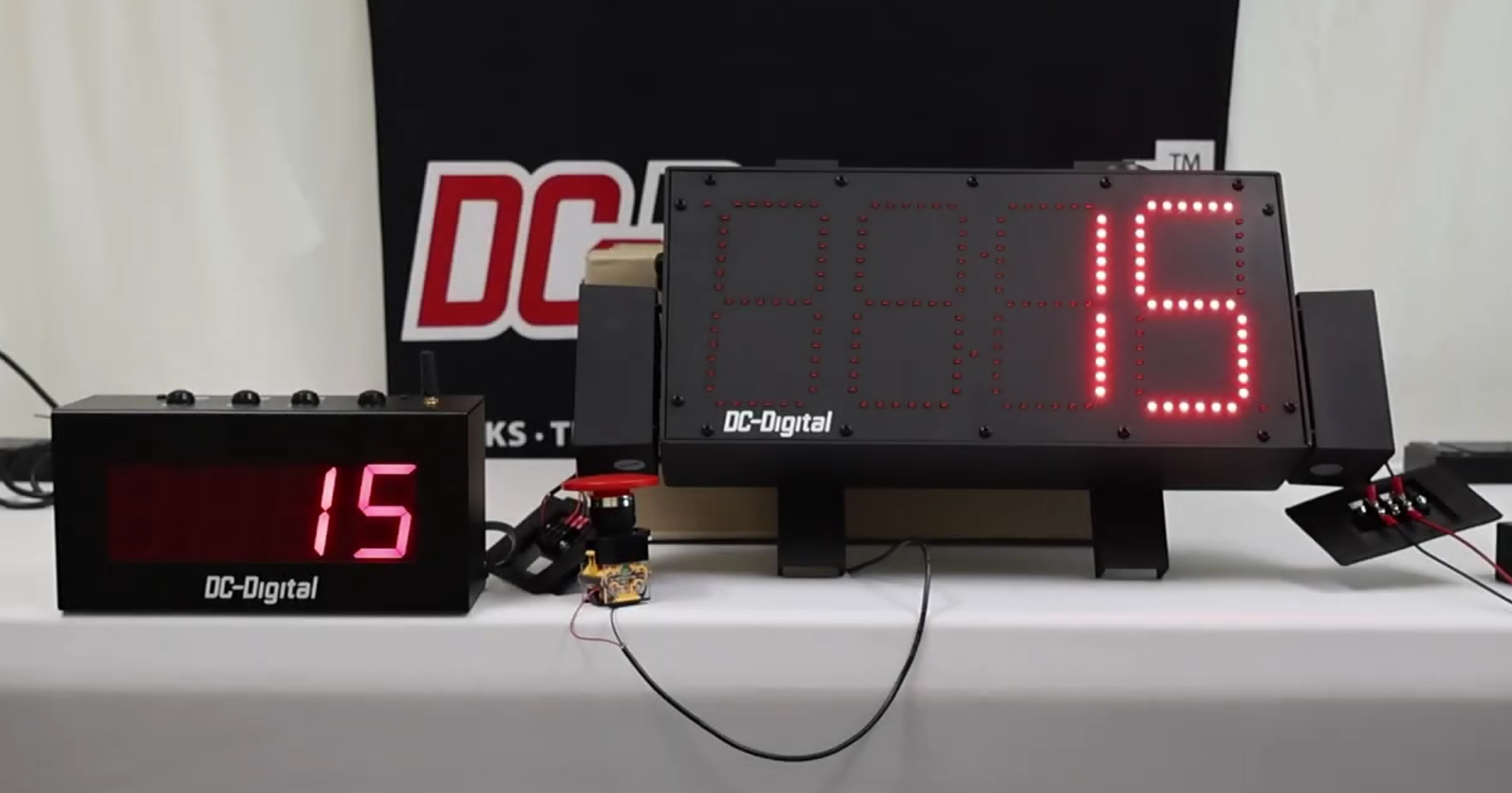

The setup consists of two independently powered units:

• The DC-25C acts as the master controller
• The DC-60C functions as the secondary display

The process begins with powering both units individually. Once powered, the user sets the maximum number of available parking spaces directly on the DC-25C. This is done through an onboard interface that allows each digit to be configured independently.

After the maximum count is established, the system is ready for operation. The customer integrates their own input device—such as a gate trigger, sensor, or push button—to control the count. These inputs send increment or decrement signals to the system, updating the number of available spaces in real time.

Both the DC-25C and DC-60C displays remain synchronized, ensuring that the same information is visible at multiple points within the parking facility.

Core Functional Capabilities

The system is designed for flexibility and ease of use, offering several important features:

• Adjustable maximum count up to four digits (9999)
• Non-volatile memory that retains settings after power loss
• Increment and decrement controls via onboard buttons or external devices
• Dual-display synchronization between master and secondary units
• Built-in safeguards to prevent exceeding maximum capacity or dropping below zero
• Ability to control count from multiple physical locations

Only the DC-25C has the ability to set or modify the maximum count, ensuring centralized control. However, both units can receive decrement inputs, allowing for distributed interaction depending on system design.

Hardware Overview

The durability and visibility of the system are key components of its effectiveness, especially in parking environments where conditions can vary significantly.

The DC-25C is designed for indoor or protected environments and features:

• A black powder-coated enclosure with IP-60 rating
• A 2.3-inch LED display
• Visibility up to 120 feet
• A standard three-prong power cord with extended cabling
• Rear mounting with teardrop knockout slots

The DC-60C is built for outdoor use and extended visibility:

• IP-66 rated weatherproof enclosure
• Large 6-inch LED display
• Visibility up to 300 feet
• 12 VDC pigtail connection with junction box
• C-Channel mounting for secure installation

Integration and Input Flexibility

One of the most valuable aspects of this system is its compatibility with external control devices. The DC-60C includes a terminal junction box that accepts dry contact inputs, allowing customers to integrate their own hardware for count control.

This enables seamless connection with:

• Entry and exit gate systems
• Vehicle detection sensors
• Ticketing systems
• Manual push-button stations

By leveraging these integrations, Babco Access Solutions, LLC can automate or manually manage parking counts based on their operational needs.

Practical Application

In this deployment, the system is used to provide drivers with clear, real-time information about available parking spaces before they enter the facility. The DC-60C, positioned outdoors, ensures high visibility from a distance, while the DC-25C provides local control and internal monitoring.

This configuration improves traffic flow, reduces congestion, and enhances the overall user experience by eliminating uncertainty around parking availability.

Conclusion

The combination of the DC-25C and DC-60C Parking Garage Space Counter delivers a reliable and adaptable solution for parking management. With its ability to integrate with external systems, maintain synchronized displays, and operate in both indoor and outdoor environments, this setup is well-suited for a wide range of applications.

For organizations like Babco Access Solutions, LLC, this system provides a straightforward yet powerful way to manage parking availability and communicate it effectively to users in real time.
