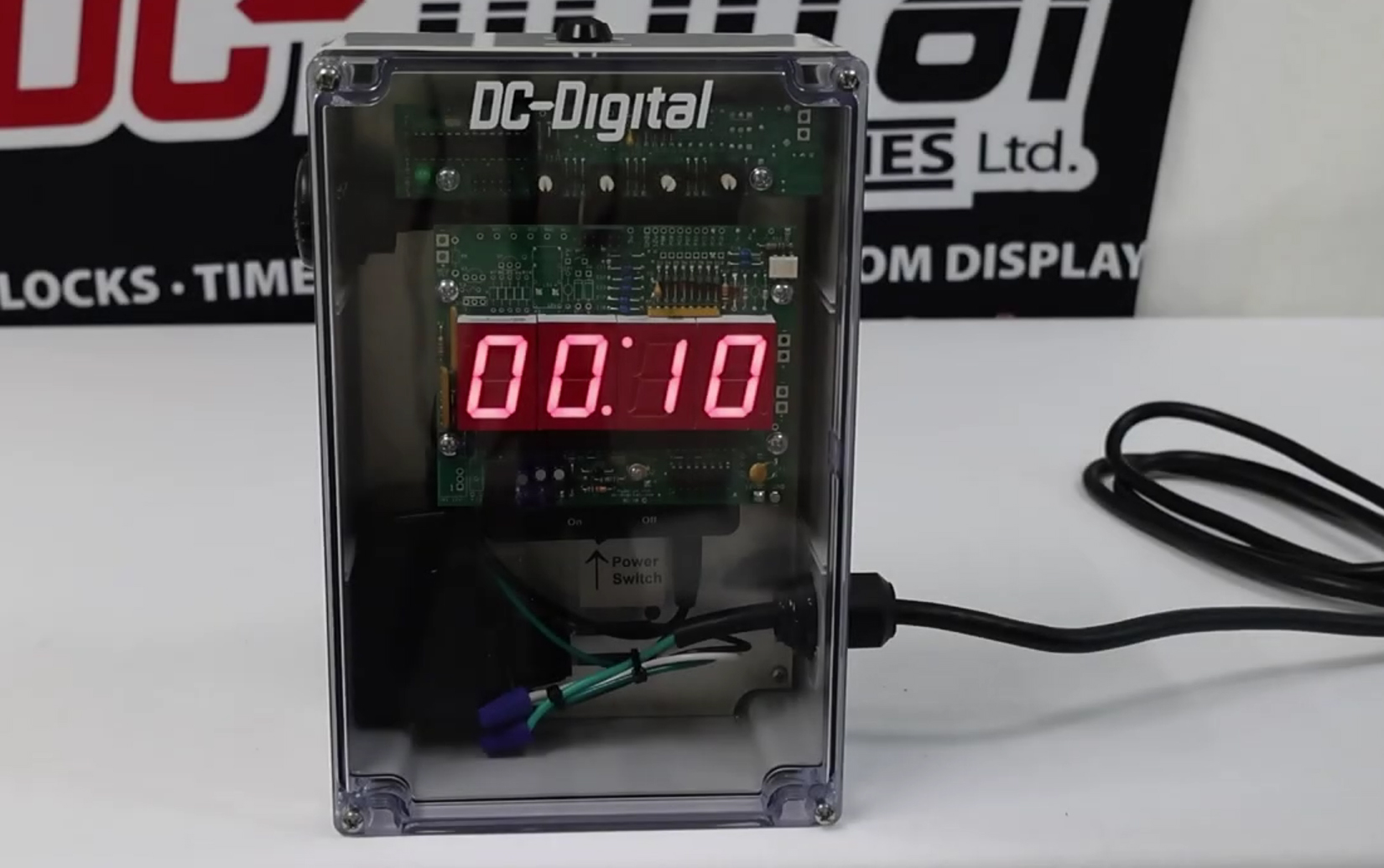

The updated DC-10T-DN-BCD Nuclear Power Plant Alarm Countdown Timer is designed to help operators safely manage the amount of time products or equipment remain inside nuclear environments, as requested by Constellation Energy. Built for dependable operation and easy setup, this custom countdown timer provides precise timing control while delivering a clear audible notification when the countdown cycle reaches zero.

Operation is simple and straightforward. The unit is powered using a 120 to 240 VAC NEMA 5-15 power cord, which also recharges the fully integrated internal battery system. Once powered on, users can access the internal BCD rotary switches located inside the enclosure to set the desired countdown duration. The timer can be configured anywhere from seconds up to a full 99 minutes and 59 seconds. After setting the required time, the operator simply presses the top-mounted push button switch to begin the countdown sequence.

This updated model demonstrates how quickly the countdown value can be adjusted. By removing the front enclosure cover, users gain access to the BCD rotary switches for easy time configuration using a standard flathead screwdriver. Once the timer reaches zero, the system automatically resets to the programmed countdown value while simultaneously activating the adjustable end-of-period buzzer alarm. The alarm can then be silenced by pressing the push button switch again.

One of the major upgrades featured on this newer version of the DC-10T-DN-BCD is the integrated rechargeable battery backup system. In the event external power is disconnected, the internal battery allows the timer to continue operating independently. The NEMA 5-15 power cord continuously recharges the internal battery while connected to wall power, allowing the unit to reach a full recharge in approximately 48 hours.

Key Features:
• Countdown range from 00:01 up to 99 minutes and 59 seconds
• Four-digit 1-inch display viewable up to 25 feet away
• BCD rotary switches for precise minute and second configuration
• Push button operation for countdown start and alarm reset
• Adjustable end-of-period buzzer alarm from 75 to 95 dB
• Internal rechargeable battery backup system
• 120 to 240 VAC operation via NEMA 5-15 power cord
• NEMA 4X IP66 rated polycarbonate enclosure
• UL94 V0 flammability rated enclosure construction
• Updated enclosure design with four rear mounting through holes

The DC-10T-DN-BCD Nuclear Power Plant Alarm Countdown Timer is ideal for facilities that require reliable countdown monitoring, controlled process timing, and clear alarm notification in demanding industrial or nuclear-related environments. Its rugged enclosure, rechargeable battery functionality, and configurable countdown operation make it a dependable solution for critical timing applications.
