See products: DC-40T-DN-W & DC-10T-DN-W

DC-Digital recently manufactured a custom master/secondary countdown timer system for the Glynn County Schools JR. ROTC program. Designed specifically for use on a rifle training range, the system provides synchronized countdown timing across multiple viewing locations, ensuring every participant sees the same accurate time regardless of position.

The installation consisted of one DC-40T-DN-W Master Countdown Timer and three DC-10T-DN-W Secondary Countdown Timers. A wireless RF handheld controller communicates directly with the master timer, allowing operators to set countdown values, start, stop, reset, and manage timing operations without being physically connected to the display. The master timer then wirelessly transmits synchronized timing information to each secondary display through an integrated 900 MHz LoRa radio network, keeping every timer perfectly synchronized.

Reliable Master/Secondary Wireless Synchronization

The master/secondary architecture allows a single operator to control multiple displays simultaneously while eliminating the need for extensive wiring between locations. Secondary displays can typically be positioned up to 300 feet from the master unit in most indoor and outdoor environments, providing exceptional flexibility for facilities requiring multiple synchronized viewing points.

Available system configurations include:

• Countdown timers
• Count-up timers
• Time of day clocks
• Wireless or wired master/secondary communication
• Push-button control on the master display
• Wireless handheld remote operation
• Multiple display sizes ranging from 1-inch to 30-inch LED digits

This flexible platform allows systems to be tailored to virtually any timing application.

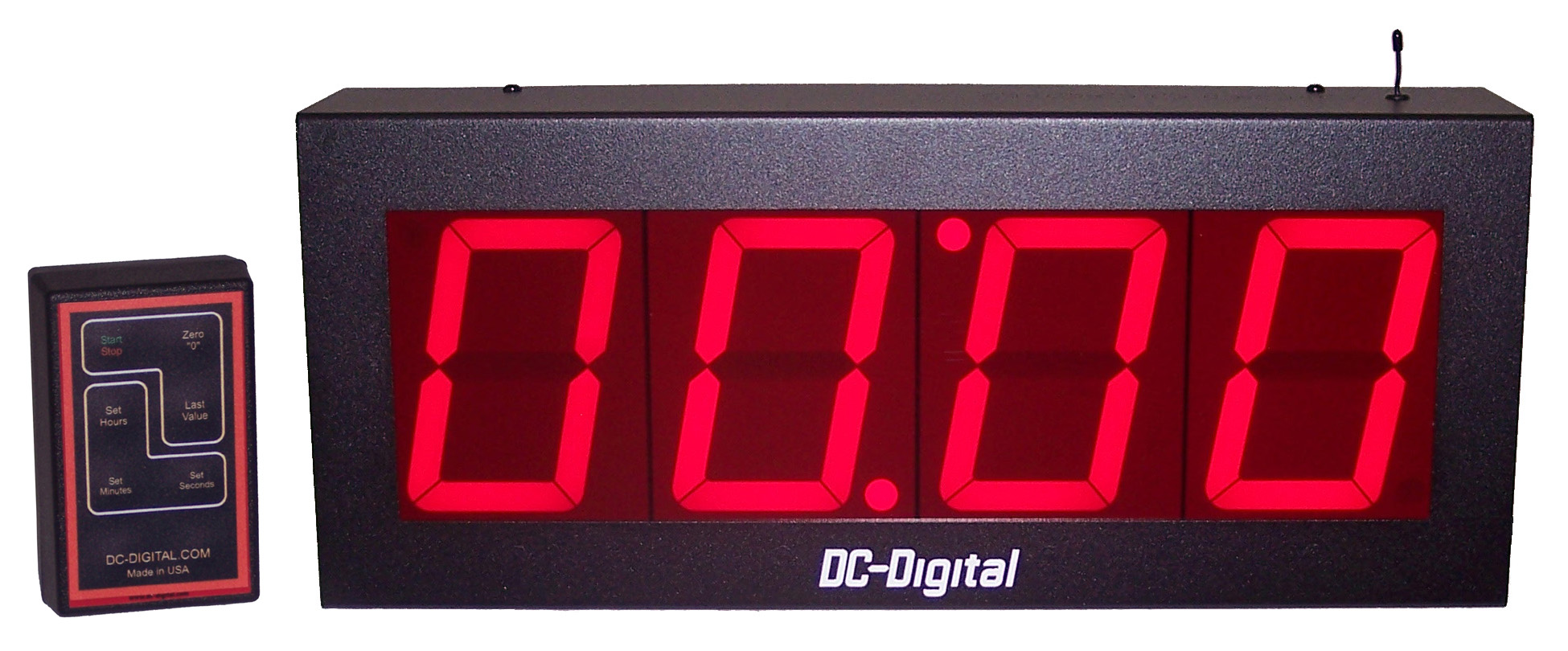

DC-40T-DN-W Master Countdown Timer Features

The DC-40T-DN-W serves as the primary control display for the entire timer network. Its large 4-inch LED digits provide excellent visibility while offering complete control of all connected secondary displays.

Key Features

• Counts down from 99 hours to hundredths of a second
• Wireless LoRa RF control operating on 902–928 MHz
• Wireless communication range of 1,500+ feet outdoors and 300+ feet indoors
• Retains the last programmed countdown value after power loss
• Start, Stop, Reset to Last Value, Reset to Zero, and time-setting controls
• Bright 4-inch red LED digits
• Viewing distance up to 200 feet
• Durable 14-gauge black powder-coated aluminum enclosure
• Optional NEMA 4X or IP66 outdoor enclosure
• Optional handle or tripod mounting
• Quartz timing accuracy factory calibrated to ±0.0005 pps

Optional accessories include audible alarms, relay outputs, flashing over-time indication, and ANDON light integration.

DC-10T-DN-W Secondary Countdown Timer Features

The DC-10T-DN-W secondary timer provides synchronized timing wherever additional viewing locations are required. Although compact, it delivers the same accurate countdown information as the master display.

Key Features

• Synchronized countdown from the master timer
• Counts down from 99 hours to hundredths of a second
• Wireless LoRa RF communication (902–928 MHz)
• Bright 1-inch red LED digits
• Viewing distance up to 25 feet
• Compact aluminum enclosure
• Retains programmed values after power interruption
• Quartz timing accuracy factory calibrated to ±0.0005 pps
• Optional NEMA 4X enclosure for demanding environments

Applications for Master/Secondary Timer Systems

While originally designed for military training and shooting range operations, this customizable timer platform is well suited for a wide variety of facilities requiring synchronized visual timing.

Common applications include:

• JR. ROTC and military training facilities
• Indoor and outdoor shooting ranges
• Athletic training centers
• Sports complexes
• Schools and universities
• Churches
• Recreation centers
• Conference rooms
• Manufacturing facilities
• Industrial production areas
• Warehouses
• Testing laboratories

Fully Customizable Timing Solutions

Every application has unique timing requirements. DC-Digital manufactures customizable countdown timers, count-up timers, synchronized clocks, and master/secondary display systems that can be configured for wireless or wired communication, multiple display sizes, specialized control methods, and optional visual or audible alerts.

Whether coordinating a training exercise, managing production timing, or synchronizing displays across an entire facility, these systems deliver dependable, accurate, and easy-to-operate timing solutions designed for professional environments.
