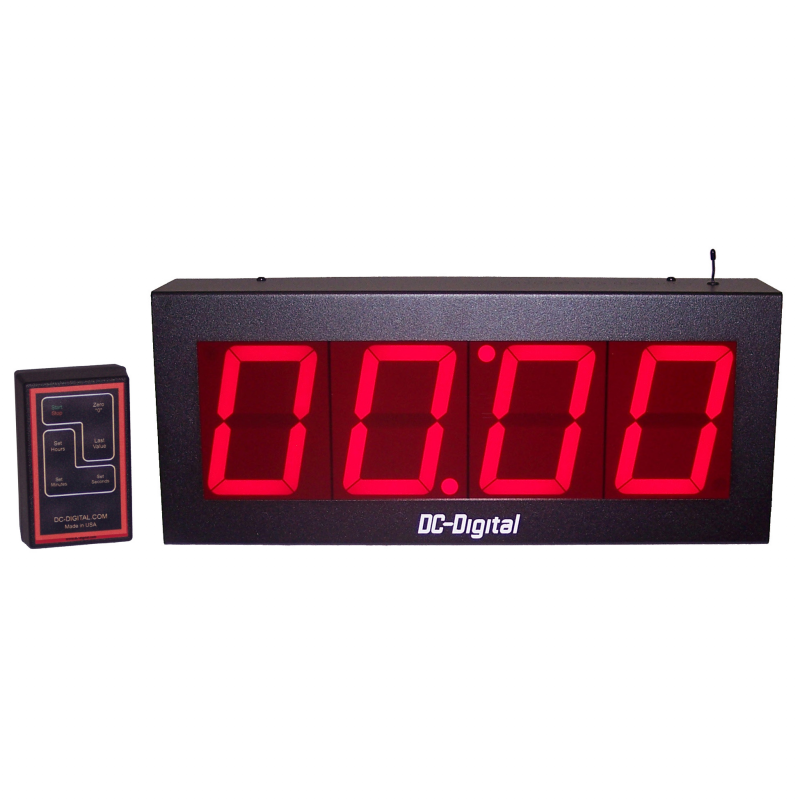

(DC-40T-DN-W) 4.0 Inch LED Digital, RF-Wireless Remote Controlled, Countdown Timer

More Details

• Counts down from 99 hours to hundredths (shift digit technology)
• Display flashes when 00:00 has been reached (other optional outputs and EOP indicators available)
• RF wireless remote controls
• 200 Feet viewing distance
• Wide viewing angle, LED digits
• Heavy duty 14 Ga. all aluminum
• 1, 2.3, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your timing needs: Contact us

Tech Notes:
• Functions: Counts down from 99 hours to hundredths of second
• Control operation: Start-Stop, Reset to Last Value, Reset to Zero, Set Hours, Set Minutes, Set Seconds
• Control type: RF-Wireless; LoRa Radio Frequency (902–928 Mhz) Remote Control Module, FCC tested and certified per CFR Title 47 Ch.1 15.245
• Range: 1500+ feet outdoor, 300+ feet indoor (top mounted push-buttons optional)
• End of period: Display flashes 1/2 second ON, 1/2 second OFF once 00:00 (end of period has been reached (optional end of period indicators: flashing count up overage time, ANDON light, tone, relay outputs)
• Power: PS-12-700,120-240Vac @ 500 mA power wall adapter w/6ft. cord
• Digit type: (4) Super bright bar type 7 segment red LED 621nm
• Number height actual: 4 inches / 101.6 mm
• Viewing distance: 200 feet / 60.96 meters
• Enclosure: Tough 14 Ga. aluminum, fingerprint resistant, black powder coated (NEMA 4X enclosure available)
• Dimensions: 16-1/4 inches wide x 6-3/4 inches tall x 3 inches deep
• Mounting: 4 X 4  or 2 X 4 electrical rough in box, slotted teardrop (see spec. sheet 2D drawings), Handle and tripod mounting optional
• Audible: Optional
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click Here For Specifications Sheet
