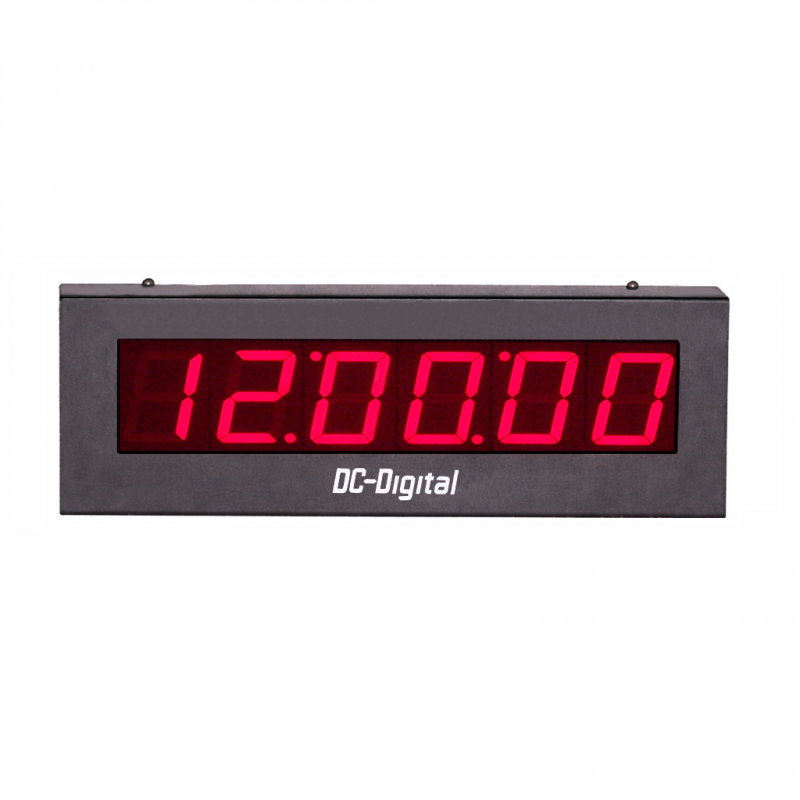

(DC-256S) Push-Button Set, Digital Clock, 2.3 Inch Digits, Hours, Minutes Seconds (Non-System)

(DC-256S) Push-Button Set, Digital Clock, 2.3 Inch Digits, Hours, Minutes Seconds (Non-System)

DC-Digital $339.95339.95 SKU# DC-256S
Qty
DC-256S (DC-256S) Push-Button Set, Digital Clock, 2.3 Inch Digits, Hours, Minutes Seconds (Non-System) DC-Digital

More Details

• 12- 24-hour time-of-day clock
• Hours, minutes, and seconds
• Momentary push-buttons
• 120 Feet viewing distance
• Heavy-duty all-aluminum enclosure
• Wide viewing angle, LED digits
• Available in All of our Digit Sizes
• Can be easily customized to fit any of your timing needs. Contact-Us
• See this product's blog page: Clocks Post
• List of options includes:
   • Red or Green LED
   • IP-60 or IP-66 Rated Enclosures
   • 1-Year Calibration or NIST Traceable Certificate
   • 1-Year, 3-Year, 5-Year or Lifetime Warranty

Tech Notes:
• Function: 12- or 24-hour time-of-day clock, Hours, Minutes, and Seconds (this is a non-system clock)
• Control operations: Momentary set switches are mounted on the top of the enclosure; set hours, set minutes, and zero seconds
• Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord (included)
• Enclosure: Tough extruded aluminum, fingerprint-resistant, black powder-coated
• Viewing distance: 120 feet / 36.5 Meters
• Number height: 2.3 inches / 58.42mm
• Dimensions: 12-3/4 inches wide x 5-3/4 tall inches x 2-1/4 inches deep
• Mounting: Slotted teardrop tabs (see specification sheet 2D drawings)
• Timing accuracy: Our Displays are calibrated using HP Frequency Counters, which are calibrated using a GPS-disciplined, oven-controlled, crystal-based 10MHz master oscillator. Each frequency counter is calibrated to 10,000,000Hz (±500Hz). Using the same freq. counter to calibrate each display board's 10MHz crystal to a divided and filtered output reference square wave of 500Hz (±.002)Hz. This equates to approximately ±2 minutes or ±126.14 seconds per year when free-running.
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1-Year (optional extended warranty plan @ checkout)
Click Here for Specifications Sheet
