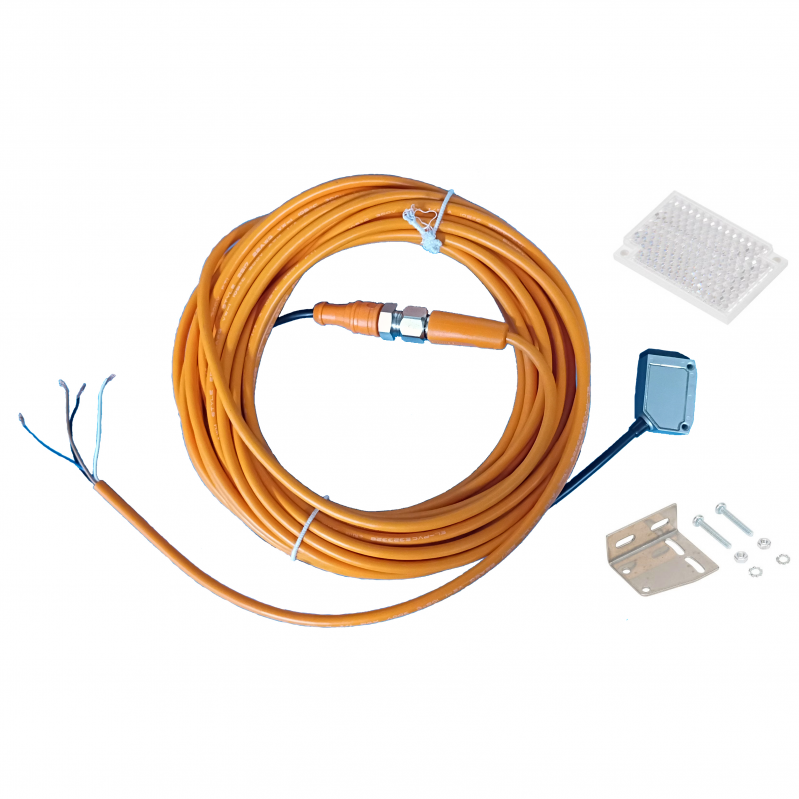

(DC-PR-RD-BB-SENS-16-PNP) 16 Ft. Polarized Reflective Red Break Beam Object Sensor PNP with Cable and Mount

More Details

• Directly connects to DC-Digital displays (see typical wiring diagram below)
• Sensor outputs PNP once an object has broken the sensor beam (requires a polarity reversal plate (included) or tape); the output is triggered and holds until the object moves out and the beam is sensed. Connects to terminal 1 (typical) on the display backplate.
• Detects the presence of objects 0-16ft, fully adjustable (intended to be used for reflective as well as dull finish objects)
• PNP (= input voltage) source activation upon initial sense
• Silver IP-67 316L Stainless reinforced upper housing
• Comes with mounting bracket
• Comes with 16 feet of cabling
• Power: 10-30VDC
Click here for typical wiring to DC-Digital Displays
