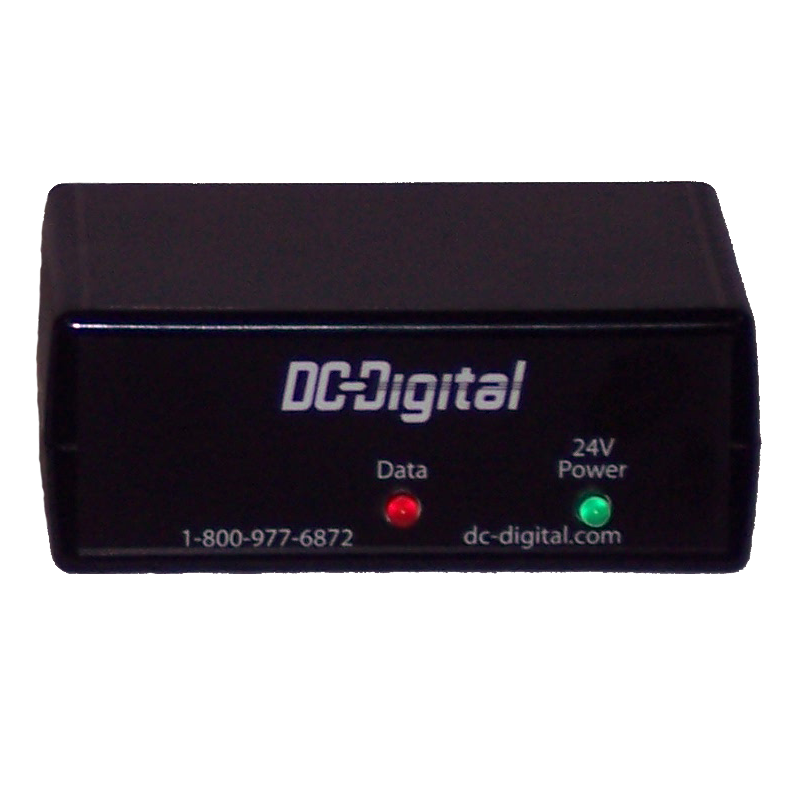

(DC-MT-N) Network Ethernet, Virtual Communications Port to Wired Serial Data Output (works with DC-Digital 4-W displays)

More Details

• High powered network virtual communications port transmitter for DC-Digital 4-W displays or any device requiring serial data
• Converts network virtual communications port data, Ethernet to 24 VDC @ 1 Amp wired serial output
• Virtual communications port for PC based computer using WINDOWS 10
• Outputs 9600 8N1, 2 - wires
• Power and Data LED's
• Flame resistant black poly carbonate clam shell enclosure
• Customizable to fit any of your clock needs: Contact-Us

Tech Notes:
• Function: Converts Network data to wired 24 VDC @ 1 Amp data (Primarily used as a virtual communication port for DC-Digital products)
• Control input serial:  Network Ethernet Communication port , Note: Compatible with Windows 10 PC's
• Control output serial: 24 VDC @ 1 Amp,  2 pole terminal block connections for output wiring (will control 100+ displays on 1000 feet of 22 gauge wiring)
• Power: PS-24-1000, 120-240Vac, 50/60 Hz to 24Vdc @1A power wall adapter w/6ft. cord
• LED indicators: Power Green LED, Data-Out Red LED
• Enclosure: Poly-carbonate flame resistant clam shell, UL 94HB
• Dimensions: 4-1/2 inches wide x 5 inches deep x 1-3/4 inches tall
• Mounting: Table Top
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1-Year (extended warranty offered @ checkout)
IP-Setup Program (not required but helpful in finding DC-MT-N on your network)

autoupdate.exe (ZIP)
