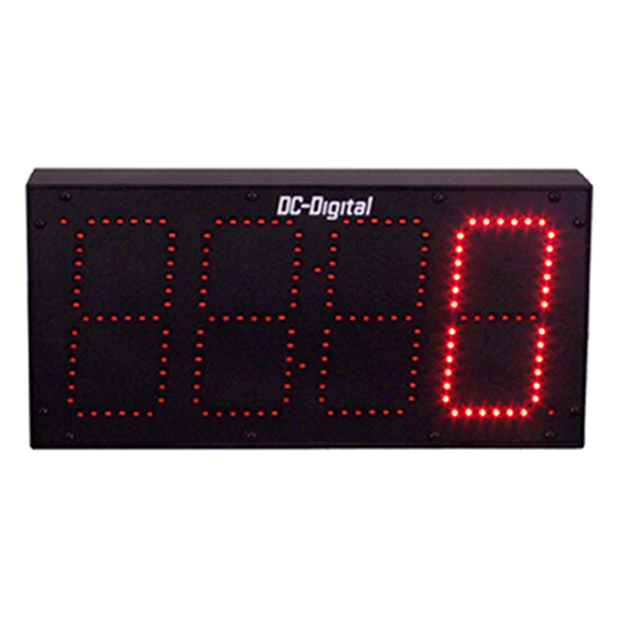

(DC-60C-Term-IN) 6.0 Inch LED Digital Multi-Input Counter that accepts: PLC, Relay, Switch and Sensor Input Controls (INDOOR)

More Details

Video shows DC-DIFFSENS-10 sensor and SW-1-HD-60-RED palm switch (both are optional)
• Counts displays up to 9999 by one's
• Fully automated
• Accepts 2 types of external control inputs
• Terminal block connections
• 300 Feet viewing distance
• Heavy duty extruded aluminum enclosure
• Wide viewing angle, LED digits
• 1, 2.3, 4, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your counting needs: Contact-Us

Tech Notes:
• Function: Counts up to 9999 by one's
• Control Function: (Pigtails in junction box) Wire 1: Increment, Wire 2: Decrement, Wire 3: Reset to Zero, Wire 4: Common (10mS response time)
• Control type: Accepts 2 types of external control inputs: Momentary contact closure or PNP source (5-30VDC) pulse. (NPN input optional)
• Power: Grounded 3 prong 6ft. SVT indoor power cable: optional (100-240 Vac power; 50/60Hz@2 Amps with ground, junction box with pigtails)
• 12 VDC Power Option: Call for details
• Digit type: (4) x 7 Segments made up of individual 5mm oval, 110 x 40 degree viewing angle, 1100 mcd sunlight resistant red LED 621nm (Adjusted for indoor use)
• Number height: 6 inches / 152.4 mm
• Viewing distance: 300 feet / 91.44 meters
• Enclosure: Tough extruded aluminum, fingerprint resistant, black powder coated, enclosure
• Dimensions: 16-1/8 inches wide x 7-3/4 inches tall x 3-1/4 inches deep
• Mounting: (2) slotted teardrop mounting tabs (see spec. sheet 2D drawings), Handle and tripod mounting optional
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
