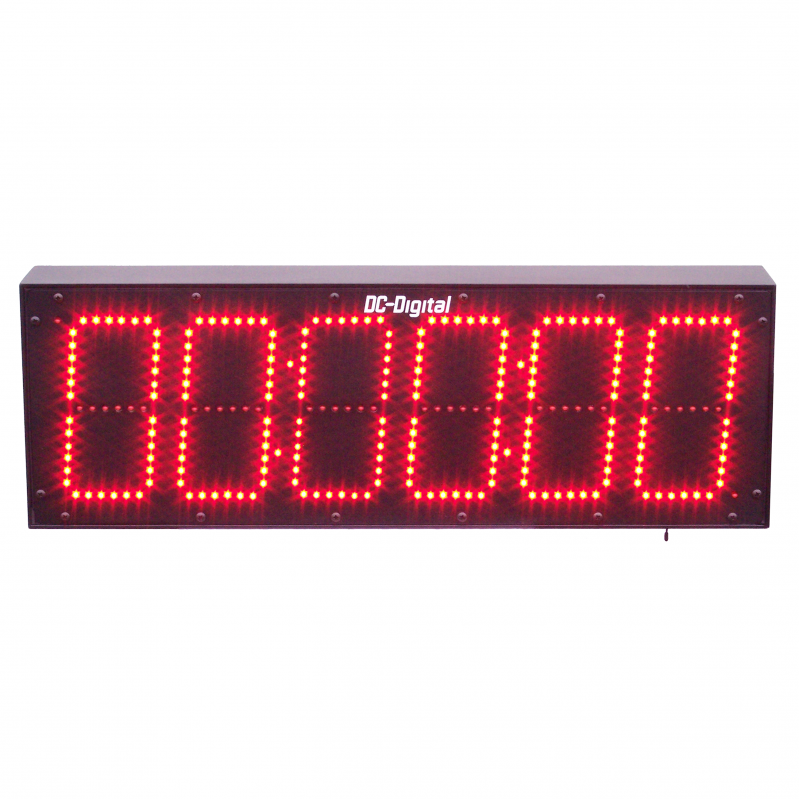

(DC-606N-T-DN-UP-Static) 6.0 Inch, 6 Digit, LED Digital, Network Connected, Web Page or 3rd Party Controlled, Count Up timer, Countdown Timer, Time of Day Clock and Static Number Display (OUTDOOR)

More Details

• Displays number data from any network PLC, computer, tablet, cell phone, or 3rd party programmable controller (addressable up to 676 displays)
• No software subscriptions needed, simply send the ascii data string code to the displays IP address (see Network Data Protocol for further information)
• Displays can count up, countdown, static numbers, time of day clock
• DHCP or Static IP programmable (ships DHCP)
• 300 Feet viewing distance
• Heavy duty 14 Ga. all aluminum enclosure
• Wide viewing angle, LED digits
• 1, 2.3, 4, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your clock needs: Contact us!

Tech Notes:
• Function: Network connected and controlled simply send ascii data code via UDP or TCP to the displays IP. The displays are fully addressable up to 676, and can be utilized as a count up timer (MM:SS), countdown timer (MM:SS), static number display (with or without middle decimal point or colon), and time of day clock (12-24 Hour)
• Control operations: Network - DHCP or Static IP (user programmable through included IP I.D.software). A two letter addressing protocol allows 676 displays to be controlled from one IP address. Up to 26 groups each with up to 26 displays in each group.
• Computer, tablet, cell-phone, PLC or 3rd Party Control System:Send commands via Telnet, terminal software, virtual COM port, hosted web interface, PLC, or third-party control platforms such as Crestron, Extron, Q-SYS, or similar automation/control systems. Refer to the Network Data Protocol and Setup Page for communication setup instructions and command structure. (Optional real-time display feedback for controller interface integration is available via the, DC-Digital T-DN-UP-Static Output Protocol Sheet. See checkout options above for availability and configuration details.
• Control connection: Ethernet RJ-45 connector mounted on the side of the enclosure inside weather-resistant junction box
• Power: Weather-resistant junction box with pigtails for 100-240VAC, 50/60Hz, @ 3 amps with ground: (optional grounded 3 prong 9ft. outdoor power cable)
• Digit type: (6) x 7 Segments made up of individual 5mm oval, 110 x 40 degree viewing angle, 1100 mcd sunlight resistant red LED 621nm
• Number height, actual: 6 inches / 152.4 mm
• Viewing distance: 300 feet / 91.44 meters
• Enclosure: Aluminum IP-66 outdoor wet location waterproof rated, tough, fingerprint resistant, black powder coated
• Dimensions: 23-3/8 inches wide x 7-3/4 inches tall x 3-1/4 inches deep
• Mounting: (2) slotted teardrop mounting tabs (optional mounting methods available)
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz) (free runs if server becomes offline)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year
