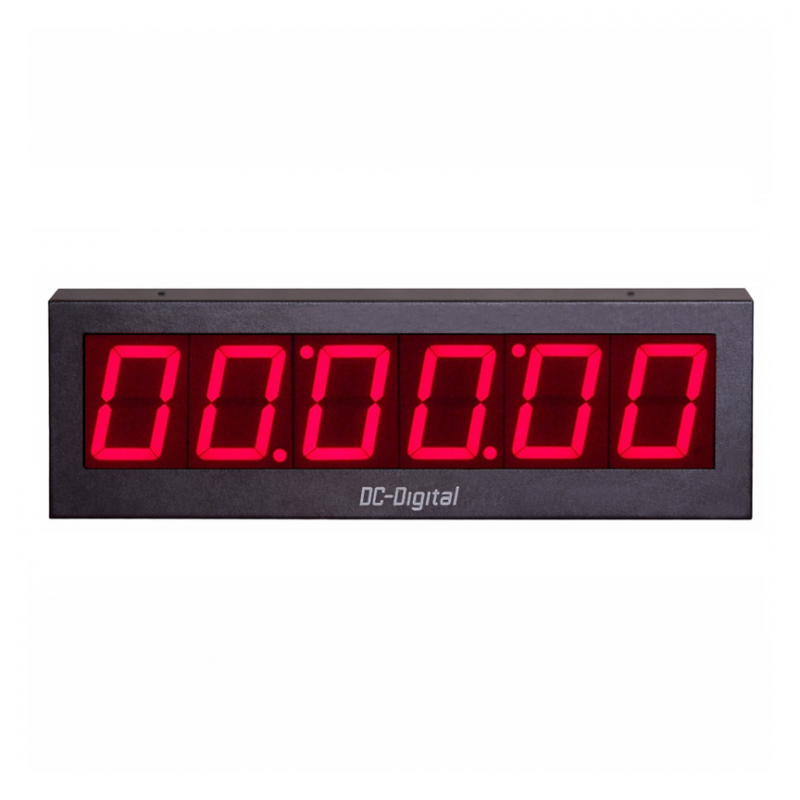

(DC-406T-UP-TERM) LED Digital Count Up Timer, allows PLC, Switch, Sensor, Relay Inputs, 4 Inch Digits, Hours, Minutes, Seconds

(DC-406T-UP-TERM) LED Digital Count Up Timer, allows PLC, Switch, Sensor, Relay Inputs, 4 Inch Digits, Hours, Minutes, Seconds

DC-Digital $441.95441.95 SKU# DC-406T-UP-TERM
DC-406T-UP-TERM (DC-406T-UP-TERM) LED Digital Count Up Timer, allows PLC, Switch, Sensor, Relay Inputs, 4 Inch Digits, Hours, Minutes, Seconds DC-Digital

More Details


Video shows SW-1-HD-60-RED and Green palm switches
Multi-input controlled; PLC, Relay, Remote Push-button, PNP Sensor
• Counts from hundredths of a second to 99 hours, 59 minutes, 59 seconds
• Accepts 3 types of external control inputs
• Terminal block connections
• Accepts 2 types of power supply sources

• 200 Feet viewing distance
• Heavy duty extruded aluminum enclosure
• Wide viewing angle, LED digits
• 1, 2.3, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your counting needs: Contact us!

Tech Notes:
Functions: Counts up to 99:59:59 (Hours:Minutes:Seconds) from hundredths of a second (Shift Digit Technology)
• Controls function: 3 terminal connections for, Reset and Start, Start-Stop (pause), Reset to zero
Controls: Each terminal accepts 3 types of external control inputs: Momentary; Contact closure, PNP (5-30VDC) and/or optional NPN
• Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord (Included) or will also accept customer supplied 24 Vdc @ 500 mA power (terminal block connection)(not available with NPN only controls)
• Digit type:(6) Super bright red LED 660nm
Number height actual: 4 inches / 101.6 mm
Viewing distance: 200 feet / 60.96 meters
Enclosure: Extruded aluminum, tough, fingerprint resistant, black powder coated (NEMA 4X enclosure available)
Dimensions: 24-1/2 inches wide x 7-3/4 inches tall x 2-3/8 inches deep
Mounting: (2) slotted teardrop mounting tabs (see spec. sheet 2D drawings), Handle and tripod mounting optional
Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click here for control wiring instructions
