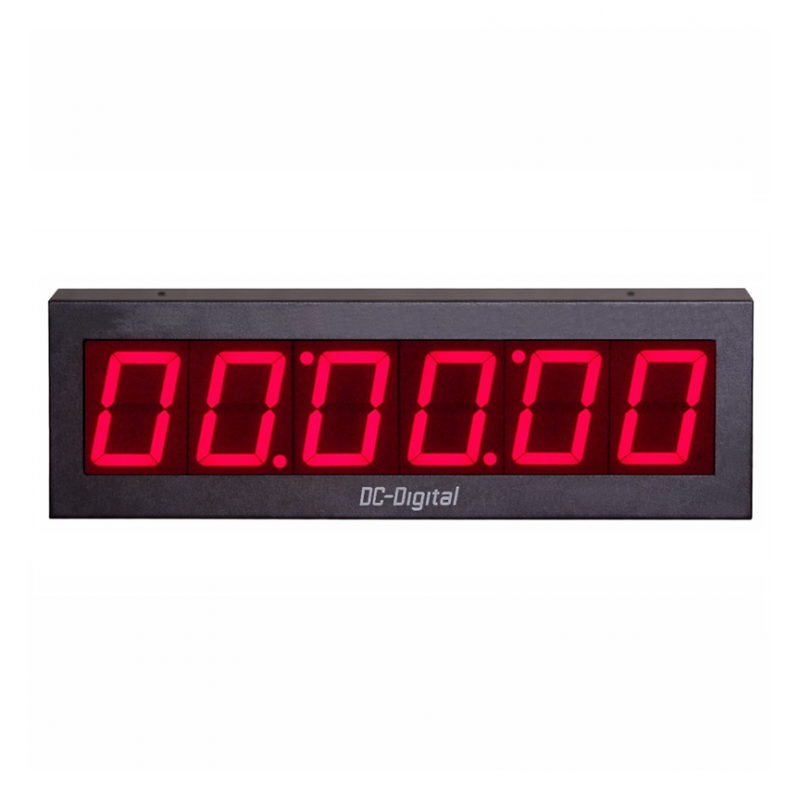

(DC-406N-T-DN-UP-Static) 4.0 Inch, 6 Digit, LED Digital, Network Connected, Web Page or 3rd Party Controlled, Count Up timer, Countdown Timer, Time of Day Clock and Static Number Display

More Details

• Displays number data from any network PLC, computer, tablet, cell phone, or 3rd party programmable controller (addressable up to 676 displays)
• No software subscriptions needed, simply send the ascii data string code to the displays IP address (see Network Data Protocol for further information)
• Displays can count up, countdown, static numbers, time of day clock
• DHCP or Static IP programmable (ships DHCP)
• 200 Feet viewing distance
• Heavy duty 14 Ga. all aluminum enclosure
• Wide viewing angle, LED digits
• 1, 2.3, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your clock needs: Contact us!

Tech Notes:
• Function: Network connected and controlled simply send ascii data code via UDP or TCP to the displays IP. The displays are fully addressable up to 676, and can be utilized as a count up timer (MM:SS), countdown timer (MM:SS), static number display (with or without middle decimal point or colon), and time of day clock (12-24 Hour)
• Control operations: Network - DHCP or Static IP (user programmable through included IP I.D.software). A two letter addressing protocol allows 676 displays to be controlled from one IP address. Up to 26 groups each with up to 26 displays in each group.
• Controller type: Send code via telnet, terminal program, virtual com port, displays hosted web page, PLC, Crestron, EXtron, QSC type Audio Visual controller or any 3rd party programmable network controller etc.. See Network Data Protocol and Setup Page for setup and codes
• Control connection: Ethernet RJ-45 connector mounted on the side of the enclosure
• Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord
• Digit type: (6) Super bright bar type 7 segment red LED 621nm
• Number height, actual: 4.0 Inches / 101.6 mm
• Viewing distance: 200 feet / 60.96 Meters
• Enclosure: Tough IP-60, 14 Ga. aluminum, fingerprint resistant, black powder coated
• Dimensions: 23-3/8 inches wide x 6-3/4 inches tall x 3 inches deep
• Mounting: 4 X 4 or 2 X 4 electrical rough in box, slotted tear drop knockout (see specification sheet 2D drawings)
• Timing accuracy: Same as the NTP server it is connected to or (Quartz when free running. Factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout
