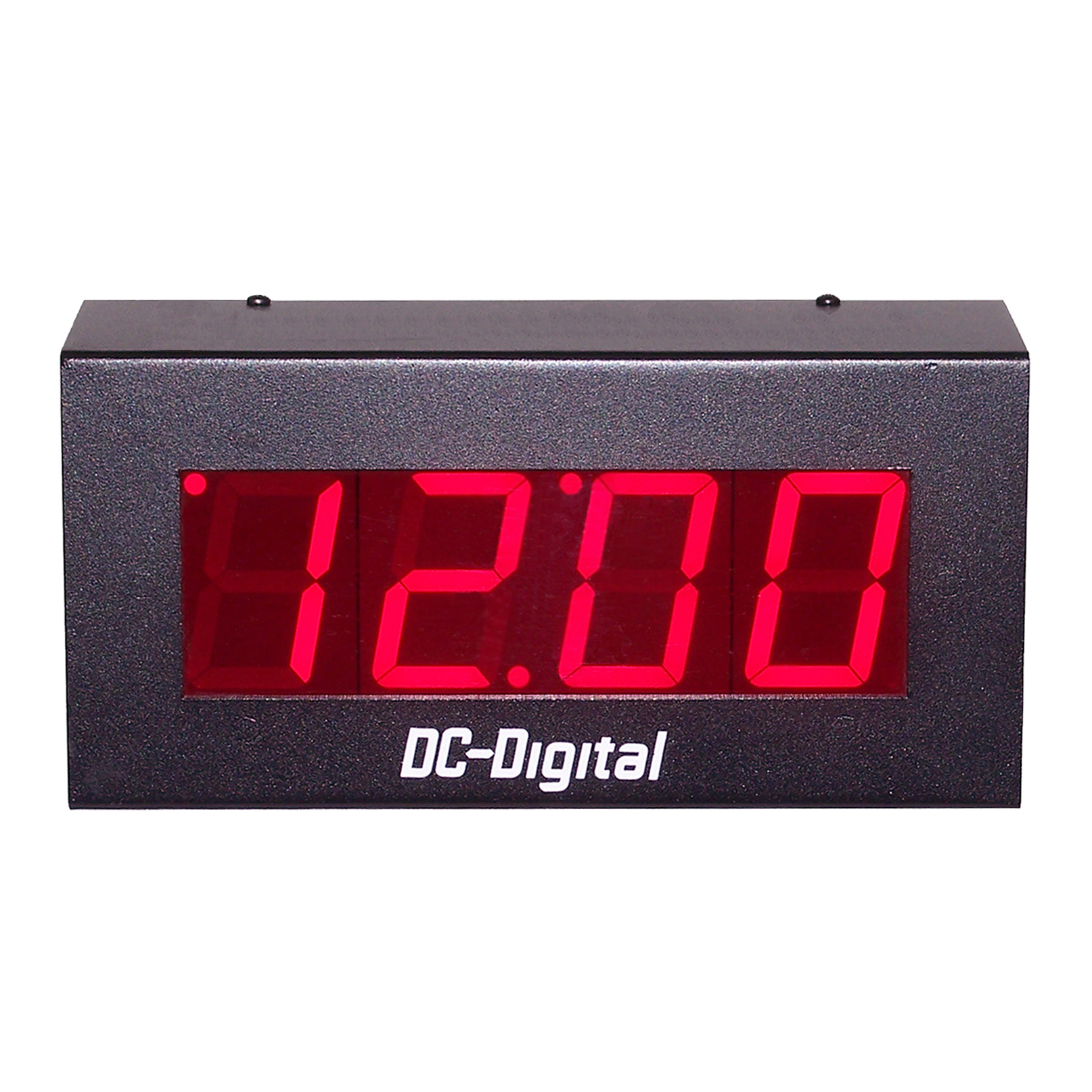

(DC-25-2W-System) 2-Wire Sync. System, Digital Clock, 2.3 Inch Digits

(DC-25-2W-System) 2-Wire Sync. System, Digital Clock, 2.3 Inch Digits

DC-Digital $240.95240.95 SKU# DC-25-2W-System
Qty
DC-25-2W-System (DC-25-2W-System) 2-Wire Sync. System, Digital Clock, 2.3 Inch Digits DC-Digital

More Details


• Uses existing building wiring
• Low voltage
• 120 Feet viewing distance
• Heavy duty 14 Ga. all aluminum enclosure
• Wide viewing angle, LED digits
• 1, 2.3, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your clock needs: Contact-Us

Tech Notes:
Function: Master clock and PS-24BD Data required: Time of day secondary system clock (12-24 Hour) that operates on 2-wires
Control operations: Synchronizes exactly to connected Master Clock (PS-24BD Data required)
Control type: 9600 baud 8N1 Ascii code sent over the 2 power wires (polarity reversal) (2)18 Gauge power and data pigtail wires out of the back of the enclosure
Power: 24 Vdc @ 300 mA
Digit type: (4) Super bright bar type 7 segment red LED 621nm
Number height: 2.3 inches / 58.42 mm
Viewing distance: 120 feet / 36.5 Meters
Enclosure: Powder coated 14 gauge aluminum enclosure (NEMA 4X enclosure available)
Dimensions: 9-3/4 inches wide x 4-3/4 inches tall x 3 inches deep
• Mounting: 4 X 4 or 2 X 4 electrical rough in box, slotted tear drop knockout (see specification sheet 2D drawings)
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click Here for Specifications Sheet
