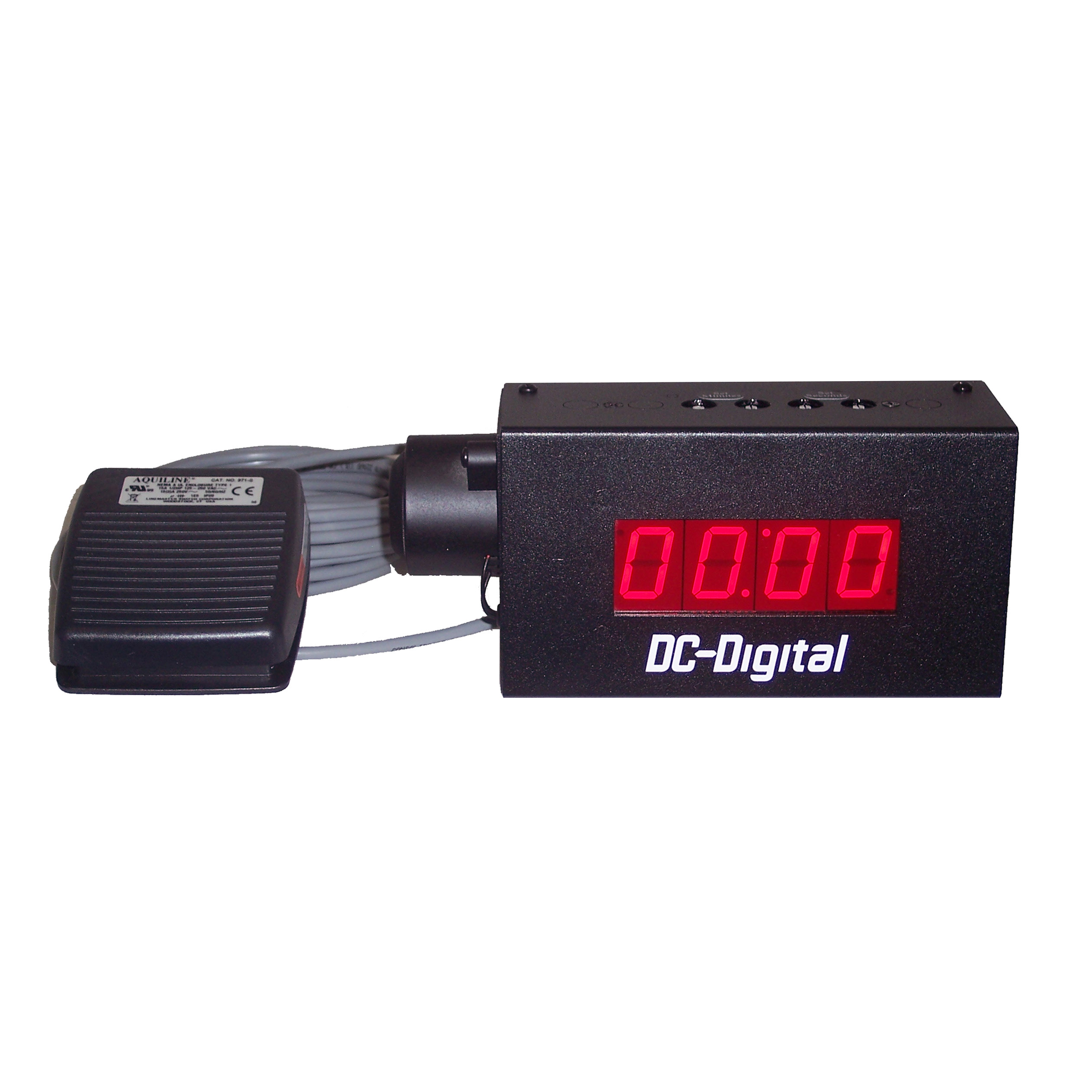

(DC-10T-DN-BCD-FOOT-HI-EOP) 1.0 Inch LED, BCD Rotary Switch Set, Foot-Switch Controlled, Digital Countdown Process Timer with High Output Adjustable EOP Buzzer

(DC-10T-DN-BCD-FOOT-HI-EOP) 1.0 Inch LED, BCD Rotary Switch Set, Foot-Switch Controlled, Digital Countdown Process Timer with High Output Adjustable EOP Buzzer

DC-Digital $381.95381.95 SKU# DC-10T-DN-BCD-FOOT-HI-EOP
Qty
DC-10T-DN-BCD-FOOT-HI-EOP (DC-10T-DN-BCD-FOOT-HI-EOP) 1.0 Inch LED, BCD Rotary Switch Set, Foot-Switch Controlled, Digital Countdown Process Timer with High Output Adjustable EOP Buzzer DC-Digital

More Details


• Counts down from 99 minutes 59 seconds

• Rotary BCD set switches
• Foot-switch activation
• Custom programming available
• High Intensity Adjustable Buzzer

• High Intensity LED digits
• Hidden mounting points
• 2.3, 4, 6, 8, 15, 30 Inch LED Digit heights available
• Can be easily customized to fit any of your counting needs: Contact us!

Tech Notes:
Functions: Counts down from 99 minutes, 59 seconds
Control type: Rotary set switch for each digit, mounted on the top of the enclosure (Set n Forget Technology)
Input: Foot switch also called pedal switch with 25 feet of cabling (included) or Momentary dry contact closure or NPN from PLC, switch, sensor, etc..
Control operation: Reset to the set value and start (other operations available upon request)
Connections: Terminal block connections inside enclosure
Number height, actual: 1 Inch / 25.5mm
Viewing distance: 25 feet / 7.62 Meters
Enclosure: Powder coated all aluminum enclosure (NEMA 4X enclosure available)
Dimensions: 6-3/4 inches wide x 3-3/4 inches tall x 2 inches deep
Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord
Timing accuracy: Quartz accuracy (factory calibrated)
E.O.P-Audible: Sounds for 3 seconds at End of Period - 2.5Khz @ 85-95 db @ 10CM (Adjustable)
Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Specification sheet
