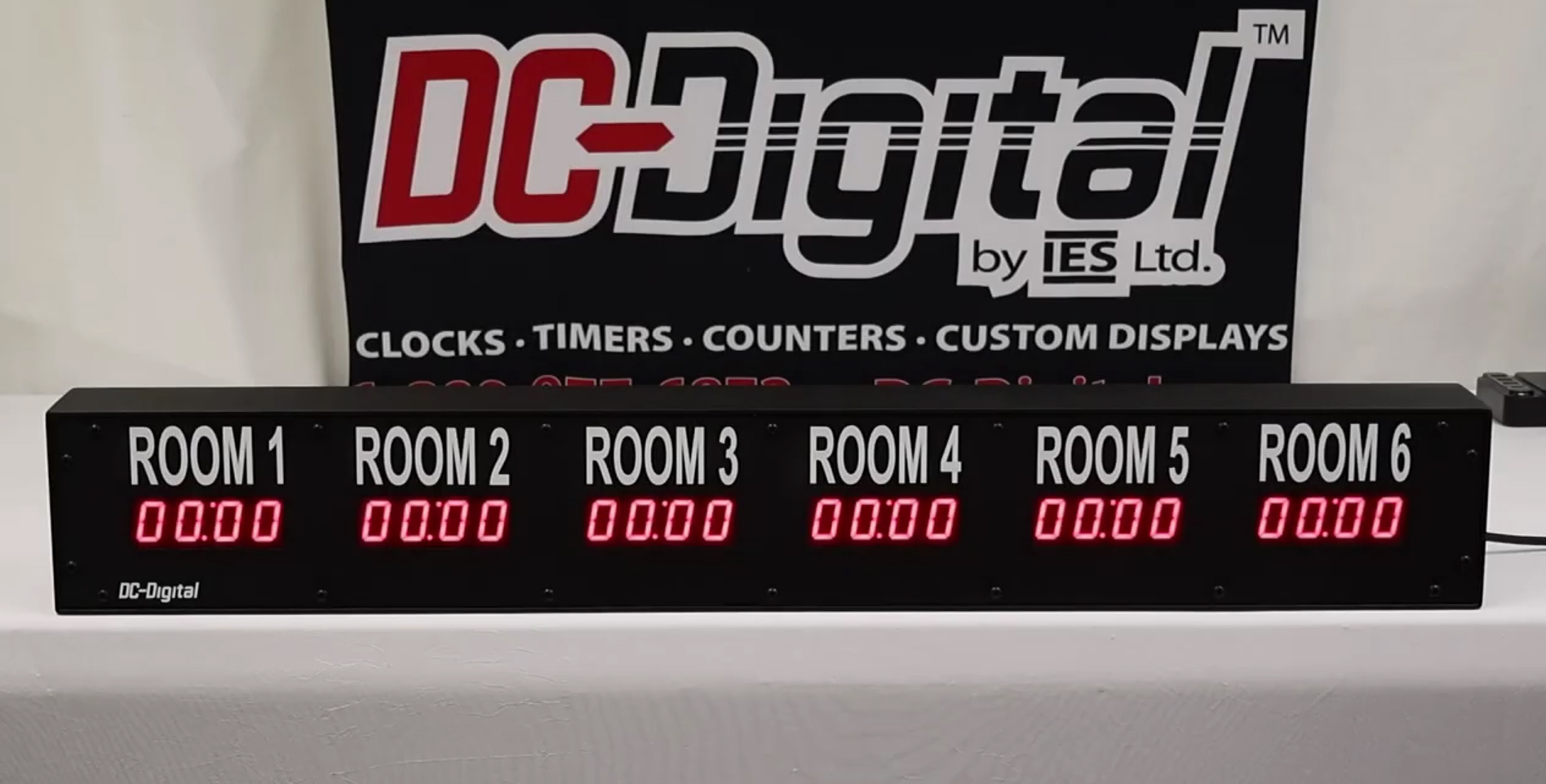

This custom-built DC-10T-UP-Term timer system was designed to meet the specific operational needs of a multi-room environment, where independent timing is essential. In this application, the system is configured for a six-room setup, allowing each space to operate on its own dedicated timer while all units are conveniently housed within a single, durable aluminum enclosure. Schumacher Electric has specifically requested this unit to it’s specifications, as the streamlined design reduces installation complexity while maintaining clear visibility and control for each individual room.

At its core, the DC-10T-UP-Term is a count-up timer that operates on a maintained trigger. When the input is activated, the timer begins counting upward immediately. As soon as the trigger is opened, the timer resets back to zero. This simple yet effective functionality makes it ideal for applications where timing needs to directly correspond to usage duration, such as room occupancy or session tracking.

Each of the six timers in this enclosure functions completely independently, with its own isolated input. There is no shared reset or common control, ensuring that activity in one room does not affect any of the others. This independence is critical in environments where multiple users or sessions are happening simultaneously.

The display format is designed for clarity and progression over time. Each timer features a 1-inch high display that automatically shifts units as time increases. It begins by counting seconds, then transitions into minutes and seconds, and eventually into hours and minutes, supporting durations up to 99 hours. This automatic scaling ensures accurate time tracking without requiring manual adjustments.

Key features and functional highlights include:

• Six independent DC-10T-UP-Term timers integrated into one enclosure
• Maintained trigger operation for straightforward start and reset control
• Automatic time scaling from seconds to minutes to hours
• 1-inch high LED displays for clear visibility across all timers
• Individual isolated inputs for each timer, ensuring no cross-interference
• Reset-to-zero functionality when the trigger is opened

From an installation standpoint, the unit is designed with flexibility and ease of use in mind. The enclosure includes a rear-mounted plate compatible with 1/2-inch conduit or seal-tight fittings, making it simple to route low-voltage wiring. Inside, terminal blocks are provided for secure field connections, accepting either dry contact closure or a 24V input signal. The polarity is non-sensitive, simplifying wiring even further.

Additional physical and mounting features include:

• Durable aluminum enclosure for long-term reliability
• Six removable rear panels for easy access to wiring and maintenance
• Clearly labeled terminal blocks for each timer input
• Desktop or countertop mounting design with included rubber feet
• Standard 120V power connection with a grounded three-prong plug and 6-foot power cord

This configuration is particularly well-suited for environments like fitness centers, salons, or any facility requiring multiple independently timed stations. By consolidating six fully functional timers into one enclosure, this solution delivers both operational efficiency and a clean, organized installation.
