The DC-40T-DN-W Metal and Surface Processing Down Timer is designed to give operators precise control over time-based processes during metal heat treatment and surface processing applications. Aalbert Surface Technologies had requested this custom-configured down timer to allow users to accurately regulate how long metals are processed, ensuring consistency, repeatability, and improved quality control across production cycles. By providing a clear visual countdown and audible end-of-period alerts, this timer helps reduce human error and supports efficient workflow management in industrial environments.

To operate the unit, the customer simply powers the timer and uses the included RF wireless handheld remote controller to set the desired countdown time. Once initiated, the timer counts down from the selected value and provides a clear indication when the process is complete. When the timer reaches zero, the end-of-period alarm sounds and the connected Andon light tower activates, signaling that the heat treatment or processing cycle has finished. These alerts continue until the operator acknowledges them using the remote controller, ensuring the completion of the process is not overlooked.

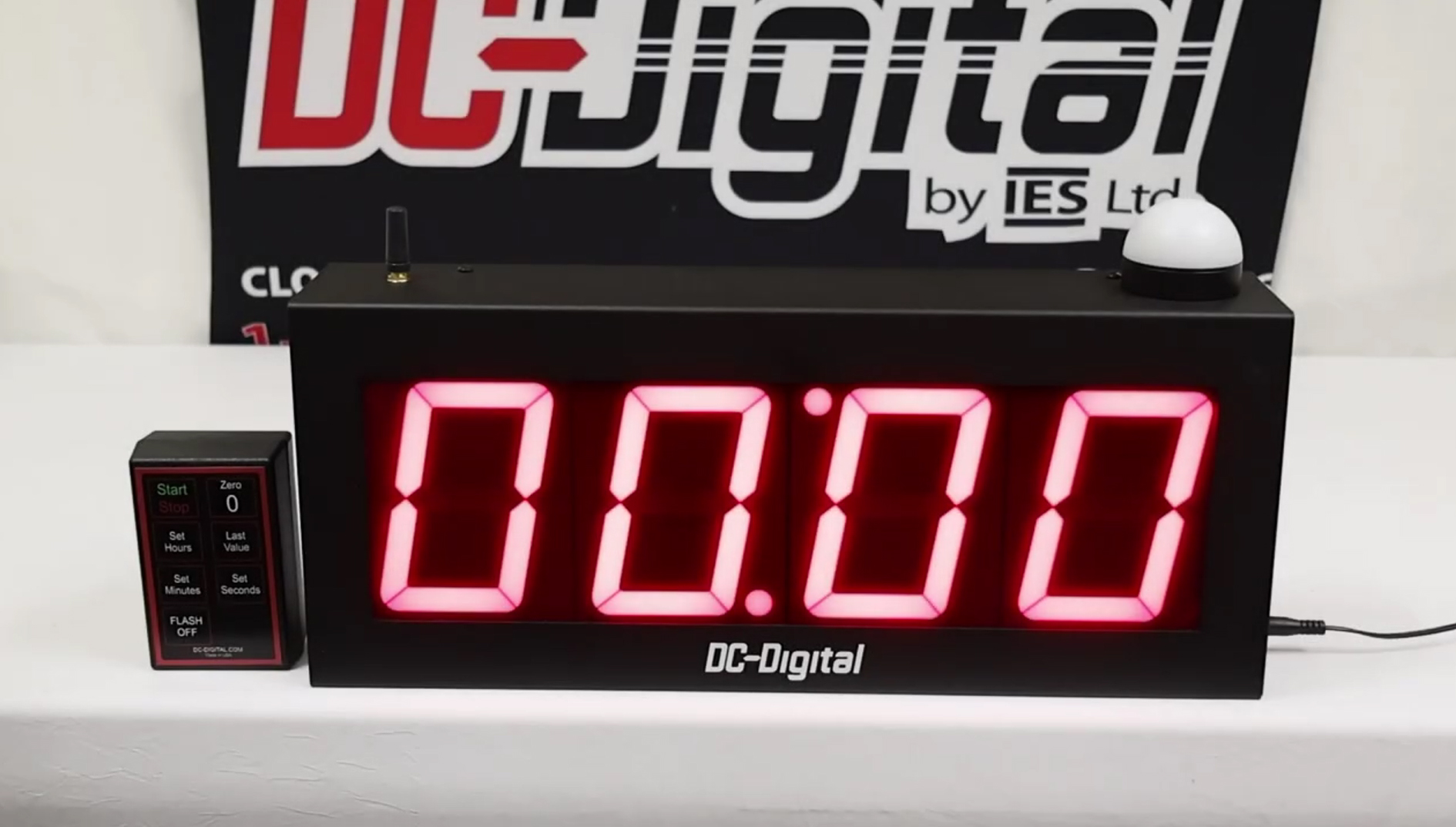

This model is built around ease of use and operational flexibility. The wireless handheld remote controller, mounted on the left side of the enclosure, features seven distinct functions that allow operators to manage timing from a distance without interrupting the process. Operators can start or stop the countdown, reset the display, adjust hours, minutes, or seconds, return to the last programmed value, or silence visual and audible alerts once the cycle is complete.

Key operational functions of the wireless remote controller include:

• Start and stop control for initiating or pausing the countdown
• Reset to zero for clearing the current time value
• Dedicated buttons for setting hours, minutes, and seconds
• Reset to last value to quickly recall the previously used countdown time
• Flash off function to disable the end-of-period alarm and Andon light once the timer reaches zero

For example, an operator can set a short countdown by pressing the set seconds button until the desired value is displayed. Once started, the timer visibly counts down in real time. When zero is reached, the alarm and red flashing Andon light activate to indicate the end of the processing cycle. These alerts remain active until the flash off function is pressed, confirming acknowledgment. The reset to last value function allows the same countdown to be reused instantly, while the zero reset function clears the display for a new setup.

In addition to its functional capabilities, the DC-40T-DN-W is built with durable, industrial-grade hardware suitable for demanding environments. The enclosure is constructed from tough 14-gauge aluminum with a fingerprint-resistant black powder-coated finish. The four-inch digital display is highly visible from distances of up to 200 feet, making it ideal for shop floors and processing areas. With four digits, the timer can count down from a maximum of 99 hours, 59 minutes, and 59 seconds, providing flexibility for both short and extended processing cycles.

Hardware and installation highlights include:

• 14-gauge aluminum enclosure with black powder-coated finish
• Four-inch display visible up to 200 feet
• Four-digit countdown capability up to 99:59:59
• 120 VAC power wall adapter with six feet of cabling
• Mounting options for 4×4 or 2×4 electrical rough-in boxes with teardrop knockouts

This custom timer also includes essential accessories that enhance operational awareness and safety. A multicolor Andon light tower provides clear visual status indication at the end of each cycle, while the internal end-of-period alarm ensures audible notification. The RF wireless handheld remote controller offers long-range operation, with up to 1,500 feet of range outdoors and approximately 300 feet indoors, allowing operators to manage timing functions from across the facility.

Overall, the DC-40T-DN-W Metal and Surface Processing Down Timer delivers reliable time regulation, clear end-of-cycle indication, and rugged construction, making it an effective solution for controlling heat treatment and metal processing operations with confidence and precision.
