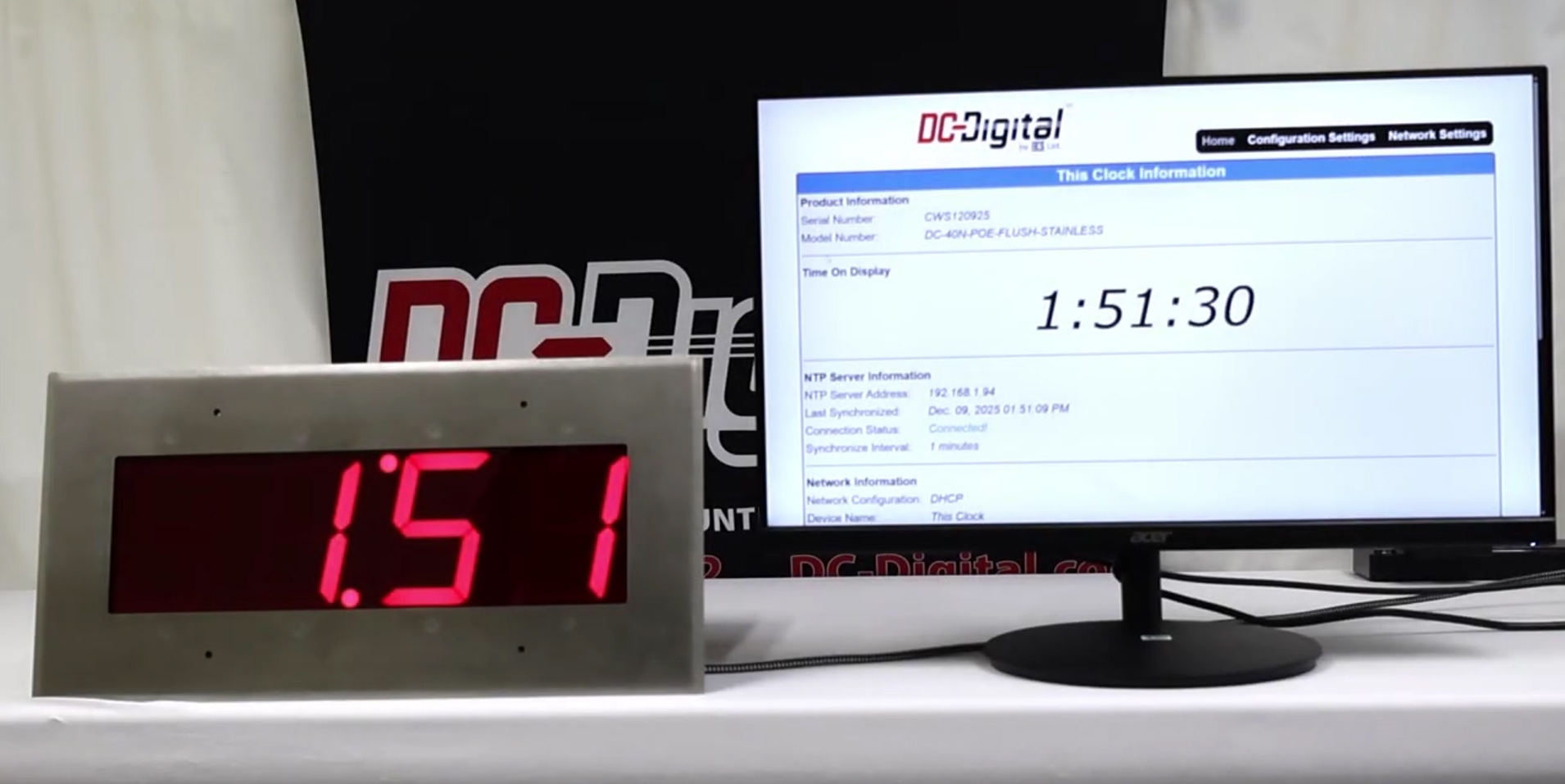

The newest 3.0 version of the NTP Network Server Webpage represents a major step forward in accuracy, customization, and reliability for network-powered timekeeping. In this demonstration, the system is shown operating with the DC-40N-POE-Flush-Stainless, a four-digit, time-of-day atomic network clock powered directly through Power over Ethernet (PoE). This model provides a clean stainless-steel flush-mount design, a bold LED numeric display, and automatic alternating of time-of-day and temperature readings—all synchronized through your network for exceptional precision.

This updated 3.0 webpage introduces a refined user interface and a robust set of configuration tools designed for modern facilities that require secure, accurate, and dependable time distribution.

Overview of the New 3.0 NTP Server Webpage Features

The redesigned 3.0 interface enhances user access and expands configuration options, ensuring that organizations can tailor their time systems more precisely than ever. The webpage begins with secure login protection, preventing unauthorized access and ensuring that only approved personnel can modify system settings. Default credentials are included, and users can update these for additional security.

Once logged in, the homepage displays a model preview of the clock—such as the DC-40N-POE-Flush-Stainless—along with essential operational information, including temperature sensor data and network status. Customers may also choose from various other models in the DC-40N-POE lineup depending on their mounting and visibility requirements.

Key NTP and Time Configuration Tools

One of the standout upgrades in Version 3.0 is the ability to specify a pool of three NTP servers. This provides automatic redundancy:

• If the primary server goes down or becomes unreachable,
• the system immediately attempts to pull time from the secondary server,
• and then the tertiary.

This multi-server failover system greatly increases reliability for mission-critical environments such as manufacturing floors, medical facilities, transportation hubs, and industrial campuses.

The update also expands the system’s time-zone selection to over 70 choices, ensuring precise region-specific accuracy no matter where the clock is deployed in the world.

Temperature Display and Customization

The DC-40N-POE series includes built-in temperature sensing, and the 3.0 webpage makes it easy to customize how this data is displayed. Users may:

• Switch between Fahrenheit and Celsius (allow up to 10–20 seconds for the change to appear on the physical display).
• Disable the temperature reading entirely if only time-of-day is required.
• Apply temperature offset adjustments by up to ±99°, useful for calibration in controlled environments.

These options allow facilities to maintain correct environmental readings based on their specific installation conditions.

Network Performance Settings

For users requiring deeper network configuration, the updated 3.0 settings page includes adjustable link speed controls, supporting:

• Half duplex (auto-negotiate)
• Full duplex at 10 Mbps
• Full duplex at 100 Mbps, the clock’s maximum supported rate

When adjusting link speed away from auto-negotiate, it’s important to ensure that router or switch settings match the clock’s configuration to maintain connectivity and prevent link issues.

Clock Identification Features

To help manage multiple clocks on the same network, Version 3.0 introduces the ability to name each clock. This label appears on the main webpage, making it easier to identify, monitor, and configure specific units across large facilities or multi-building networks.

Conclusion

The newest 3.0 NTP Network Server Webpage significantly enhances the functionality, reliability, and customization of DC-Digital’s network-powered clocks. Paired with the DC-40N-POE-Flush-Stainless, users gain a fully synchronized, PoE-driven solution designed for industrial durability, precise timekeeping, and intuitive configuration.

This update ensures that customers across manufacturing, medical, corporate, and industrial sectors can maintain accurate time with modern tools that are flexible, secure, and built to scale.
