Countdown Race Timer for Accurate Track Timing and Multi-Unit Sync Control for Auto Part Shops

Countdown,Weatherproof,High-visibility,Synchronized,Event Management Timer,Extruded Aluminum Build,Barrier Strip Integration,Custom Built to Order Timer
Countdown Timer

Trackhouse Motorplex has reached out to DC-Digital for their DC-606T-DN-W Countdown Race Timer, a robust and reliable timing solution designed specifically for racetracks across a wide variety of environments. Its primary purpose is to help racing operators manage the countdown for contenders accurately, consistently, and from long distances. Whether the racetrack is indoors, outdoors, or part of a multi-lane competitive setup, this timer provides the precision and visibility needed to coordinate each race effectively.

The system begins with simple installation. The enclosures are mounted onto a wall or any solid surface using the built-in C-Channel mounting brackets. Once the units are secured, the client sets the desired countdown value using the included wireless handheld remote controller. After the time is set, the customer can connect their own external controller or device to the barrier strip on the master unit, allowing the race facility to integrate the countdown timer seamlessly into their existing workflow. The right-hand side of the enclosure contains the barrier strip connection point, giving operators easy access to wire in their own control system, gates, or other race-start mechanisms.

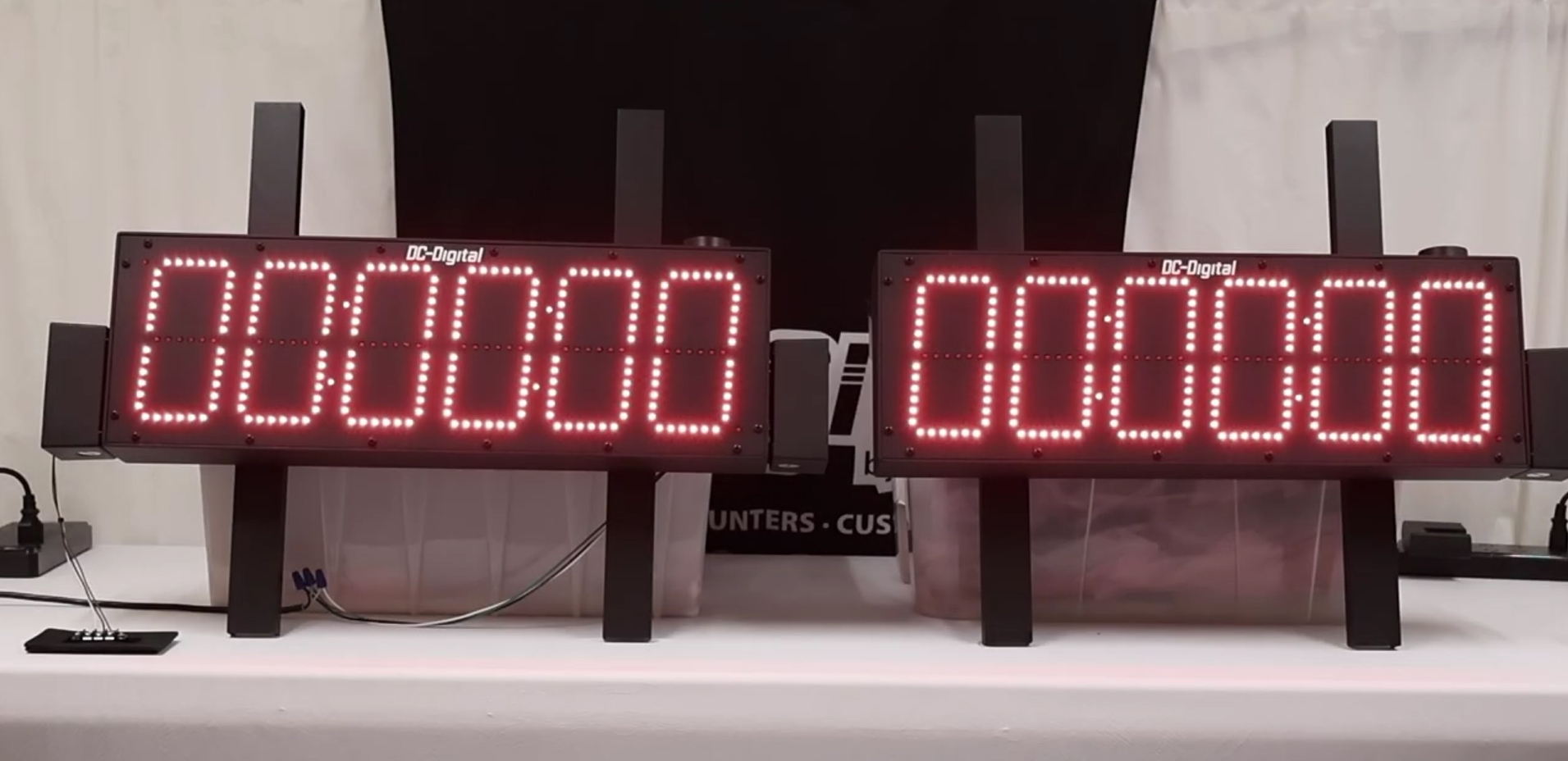

This particular setup includes two coordinated countdown timers: a master unit and a secondary unit. The secondary model is always synchronized with—and completely redundant to—the master. Regardless of how many secondary timers the operator chooses to install, all displays will mirror the master timer so long as they remain within range. The master can be quickly identified by the barrier strip junction box located on the left side of the enclosure, which is the connection hub for external equipment. Whatever appears on the master timer automatically appears on all secondary timers, ensuring consistent visibility throughout the racetrack facility.

The wireless handheld remote controller is designed for straightforward, intuitive operation. This remote allows the customer to configure precise countdown durations using dedicated hour, minute, and second buttons. For example, to set the timer to 10 hours, the operator simply presses the Set Hours button until the display reaches “10,” and presses again to lock in the value. The process is identical for minutes and seconds. Once the time is established, the countdown begins with the Start/Stop button. The same button can also pause the countdown at any moment.

Several essential functions are available directly on the remote:

  • Set Hours / Minutes / Seconds: Allows the operator to input the desired countdown values.
  • Start/Stop Button: Begins or pauses the countdown instantly.
  • Reset to Last Value: Returns the timer to the most recently programmed countdown.
  • Zero Reset: Clears the display back to 00:00:00.

Beyond the operational features, the hardware is designed for durability and outdoor performance. Each enclosure is constructed from tough extruded aluminum and is IP-66 rated for wet-location, outdoor environments. The displays use large 6-inch digits, offering excellent visibility from up to 300 feet away, making them ideal for large racetracks or facilities with extended distances between operator stations.

Key hardware specifications include:

  • Six large digits capable of counting down from 99 hours, 59 minutes, 59 seconds
  • Weatherproof IP-66 outdoor-rated enclosure
  • 6-inch LED display with high-visibility output
  • Power via a pigtail connection inside each junction box, compatible with a standard three-prong power connector or a customer-supplied connector
  • C-Channel mounting system for secure installation on walls or concrete structures
  • Included wireless handheld remote controller
  • Barrier strip on the master unit allowing start, stop, reset, and reset-to-last-value commands through a momentary dry contact

Altogether, the DC-606T-DN-W Countdown Race Timer w/ Barrier Strip offers a complete, professional-grade timing solution for racetrack operators who need accuracy, reliability, and simple control. Its straightforward functionality, expandable secondary-unit support, rugged hardware, and seamless integration capabilities make it an ideal timing system for managing events of any scale.

See similar product: DC-606T-DN-W

See tutorial video on YouTube

Visit DC-Digital website

Contact us to ask about our customized!
