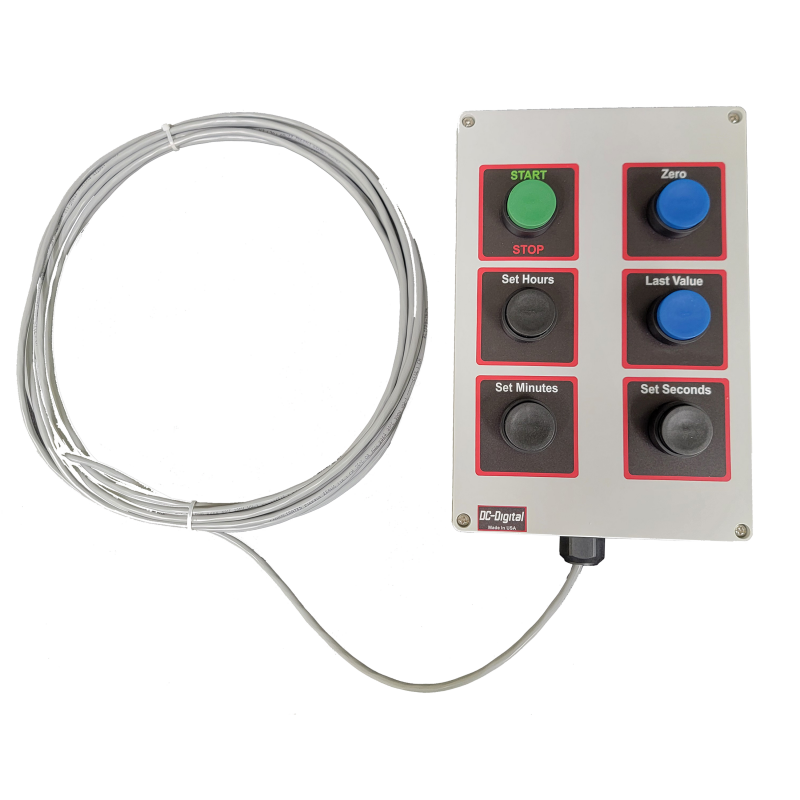

(WRC-6T-WIRED-NEMA) Wired NEMA 4X Enclosed Down-Timer Controller with Heavy Duty Push-Button Switches

More Details

• Used to control DC-Digital wired countdown timers
• NEMA 4X enclosure for harsh dirty and wet environments
• Can be used indoor or outdoor
• 25 Foot control data cable

Tech notes:
• Function: Used to control DC-XXT-DN's countdown series timers

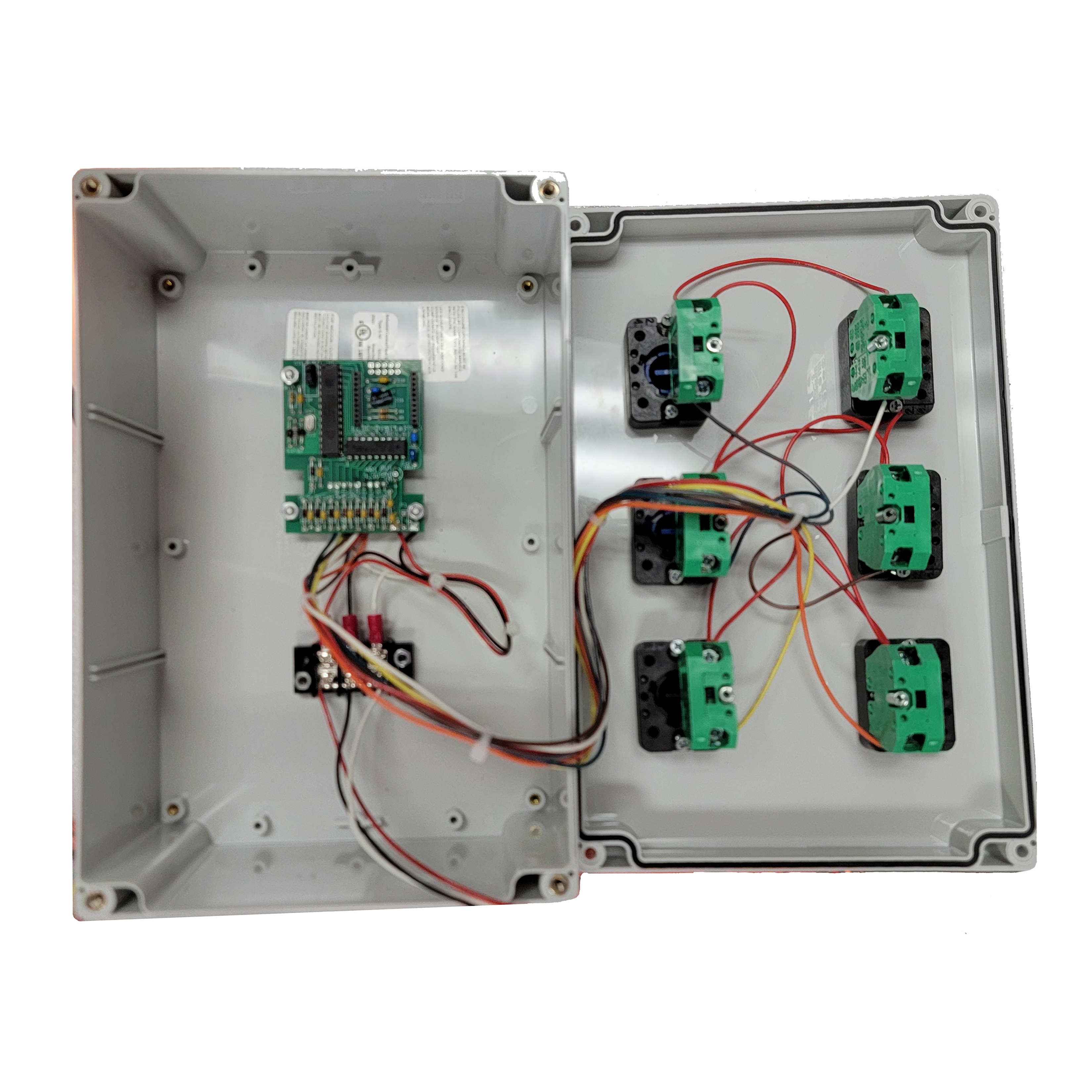

• Control operation: 6 sealed heavy duty 40mm push-button switches: Start-Stop, Reset, Reset to Zero, Set Hours, Set Minutes, Set Seconds
• Control type: Data transmitter DC-Digital code; 12VDC TTL 9600 BAUD, 8,N,1
• Range: Comes with 25 ft. control cabling
• Enclosure: Cream poly carbonate enclosure NEMA 4X sealed watertight IP-66
• Dimensions: 9.4 inches high x 6.3 inches wide x 3.5 inches deep
• Manufacturer: DC-Digital, Made in the USA
