Can be used as either an input or output device. Contact us!
Can be used as either an input or output device. Contact us!

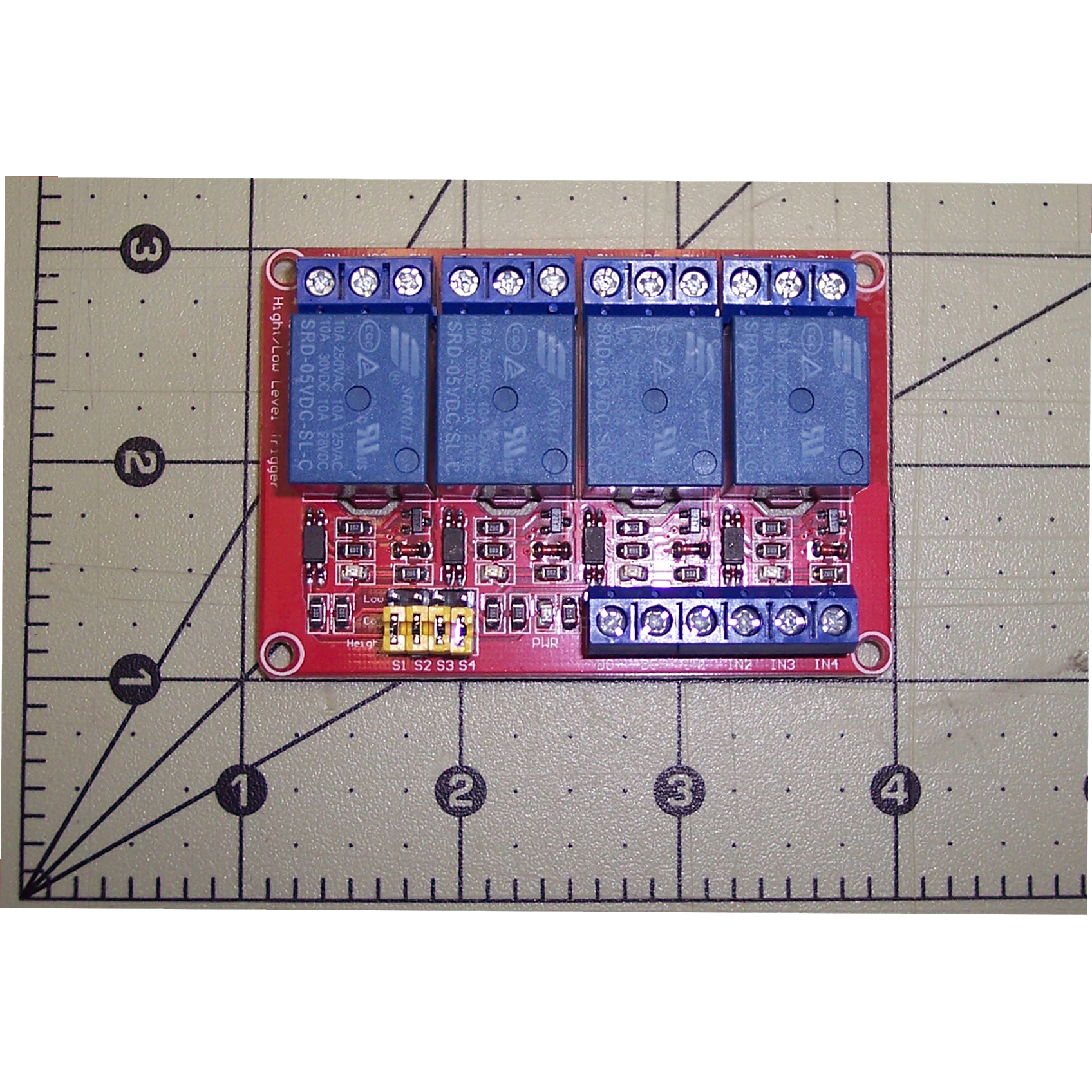

(DC-Relay-4-5V) 4-10 Amp at 125VAC, 5 Volt Opto-Isolated Activation, Relay Pack with Screw Terminals
(DC-Relay-4-5V) 4-10 Amp at 125VAC, 5 Volt Opto-Isolated Activation, Relay Pack with Screw Terminals (DC-Relay-4-5V) 4-10 Amp at 125VAC, 5 Volt Opto-Isolated Activation, Relay Pack with Screw Terminals 1(DC-Relay-4-5V) 4-10 Amp at 125VAC, 5 Volt Opto-Isolated Activation, Relay Pack with Screw Terminals 2

(DC-Relay-4-5V) 4-10 Amp at 125VAC, 5 Volt Opto-Isolated Activation, Relay Pack with Screw Terminals

DC-Digital $76.9576.95 SKU# DC-Relay-4-5V
Qty
DC-Relay-4-5V (DC-Relay-4-5V) 4-10 Amp at 125VAC, 5 Volt Opto-Isolated Activation, Relay Pack with Screw Terminals DC-Digital

More Details

•  4 Channel high current relays, AC250V 10A ; DC30V 10A
•  5V activation 4-Channel Relay interface board
•  Seperate channel LED Indication for Relay output status
•  N.O. and N.C. terminals

Tech Notes:

• Dimensions: 2 inches wide x 2.875 inch long x 3/4 inch tall
• Trigger input: 5 volt 5mA (Opto-Isolated inputs for triggering)
• Relay Type: (4) 10 AMP/32V SPDT, 320 Watts, U.L. recognized
Note: All (4) input triggers may not be available on all DC-Digital timer models.
