(DC-COUNTER-BRONZE) Network Hardware & Firmware & Webpage for Configuring,Viewing & Controlling DC-Digital Counters

More Details

• Allows network connection to; configure,view and control DC-Digital counters
• Webpage browser based firmware, no operating system or monthly subscriptions necessary; HTML 5, CSS, independent platform

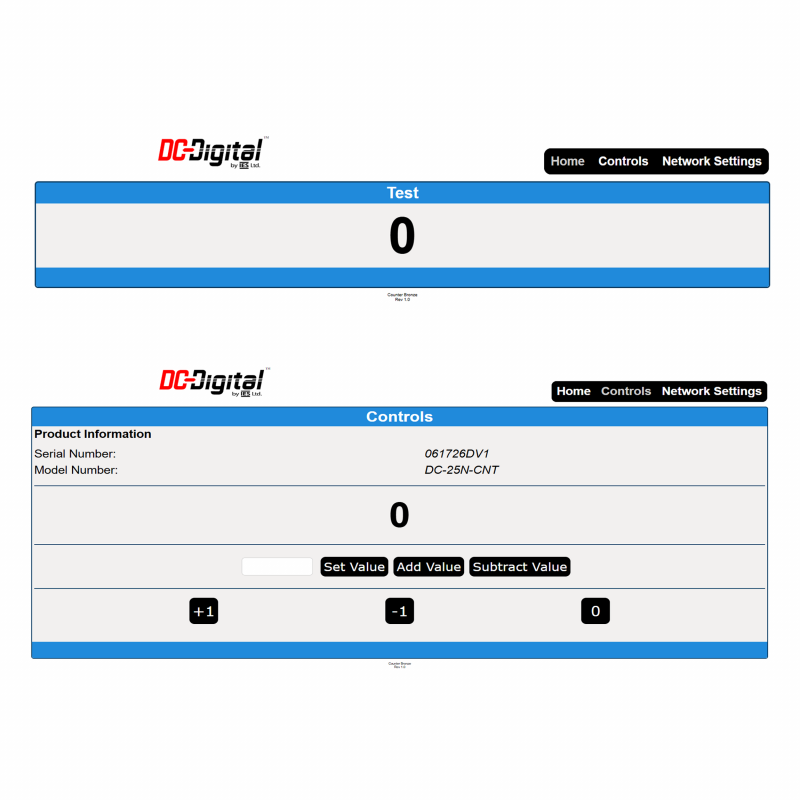

• Real-time Webpage Display
• Increment +1, Subtract-1 , Set & Reset to Zero
• Add, Subtract & Set Value buttons
• mDNS Support, configurable in Network Settings
• Control's are password locked
• Mounts internally into DC-Digital product electronics and enclosure
• Can be customized to fit your needs: Contact-Us

Tech Notes:
• Functions: Simply allows your process or product count to be seen from any web browser. Shows current counter value (in process). Can operate in conjunction with the displays local or remote controls, +1, -1 or key in new amount and send. Note: 6 & 8 Digit counter version are also available!
• Data input: Ethernet standard RJ-45 connect 10 base T,100 base T, 1000 base T
• Power input: 12-Volt VDC @ 250m Amp (supplied by connected counter)
• Enclosure: Mounted within counter enclosure
• Dimensions: Circuit Board Dimensions, 1.5 inches wide x 3.1 inches long x .675  inches tall
• Mounting: Circuit Board Mounting Holes, (3) .125 mounting holes
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Network Protocol Dependencies
