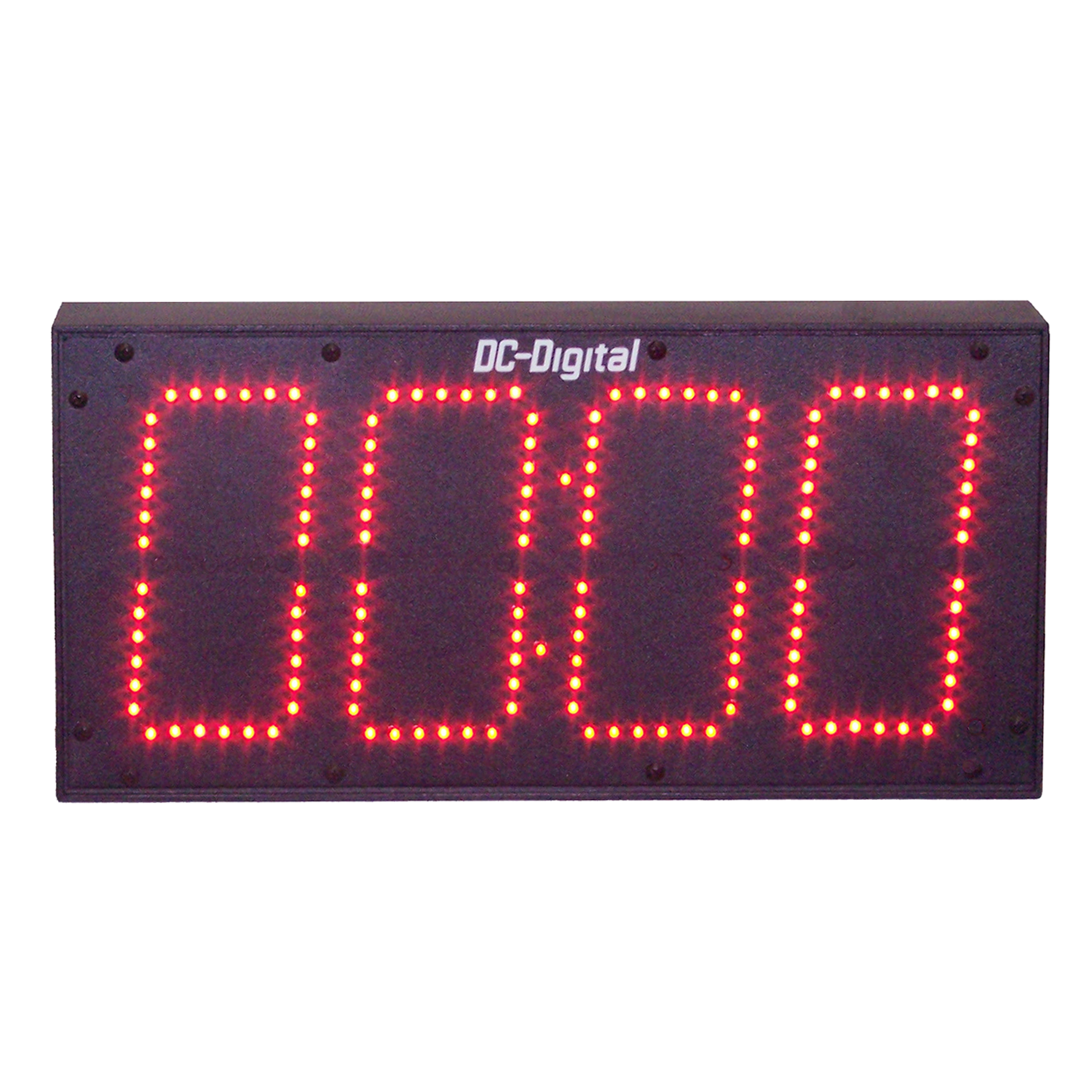

(DC-60T-DN-BCD-IN) 6.0 Inch LED Digital, BCD Rotary Set Switches, Multi-Input (PLC-Relay-Switch-Sensor) Controlled, Countdown Timer (INDOOR)

(DC-60T-DN-BCD-IN) 6.0 Inch LED Digital, BCD Rotary Set Switches, Multi-Input (PLC-Relay-Switch-Sensor) Controlled, Countdown Timer (INDOOR)

DC-Digital $637.95637.95 SKU# DC-60T-DN-BCD-IN
Qty
DC-60T-DN-BCD-IN (DC-60T-DN-BCD-IN) 6.0 Inch LED Digital, BCD Rotary Set Switches, Multi-Input (PLC-Relay-Switch-Sensor) Controlled, Countdown Timer (INDOOR) DC-Digital

More Details

• Counts down from 99 minutes 59 seconds
• Rotary BCD set switches (no batteries required)
• Accepts 2 types of external control inputs
• Heavy duty all extruded aluminum enclosure
• 300 Feet viewing distance

• High Intensity LED digits
• 1, 2.3, 4, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your timing needs: Contact us

Tech Notes:
• Functions: Counts down from 99 minutes 59 seconds (HH:MM & SS:TH time formats optional)
• Control activation: Pigtail wires inside junction box mounted on the side of the enclosure, Wire 1: Start/Pause, Wire 2: Reset to Set Value, Wire 3: Reset to Set Value and Start, Wire 4: Common
• Control input activation: Accepts 2 types of external control inputs: Momentary contact closure, 5-30VDC source pulse or PNP source pulse
• Controls for setting: Rotary manual set switch for each digit, mounted on the top of the enclosure (Set and Forget Technology)
Power: 120Vac-240Vac, 50-60Hz, @ 2 amps, 3-Prong with ground, 6ft. power cord (junction box with pigtails optional)
• 12 VDC Power Option: Call for details
Digit type: (4) x 7 Segments made up of individual 5mm oval, 110 x 40 degree viewing angle, 1100 mcd sunlight resistant red LED 621nm (adjusted for indoor use)
Number height actual: 6 inches / 152.4 mm
Viewing distance: 300 feet / 91.44 meters
Dimensions: 16-1/8 inches wide x 7-3/4 inches tall x 3-1/4 inches deep
Enclosure: All  extruded aluminum, tough, fingerprint resistant, black powder coated, enclosure (IP-66 waterproof wet location enclosure available)
Mounting: (2) slotted teardrop mounting tabs (see spec. sheet 2D drawings), Handle and tripod mounting optional
Audible: Optional
Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
Manufacturer: DC-Digital, Made in the USA
Specification sheet
