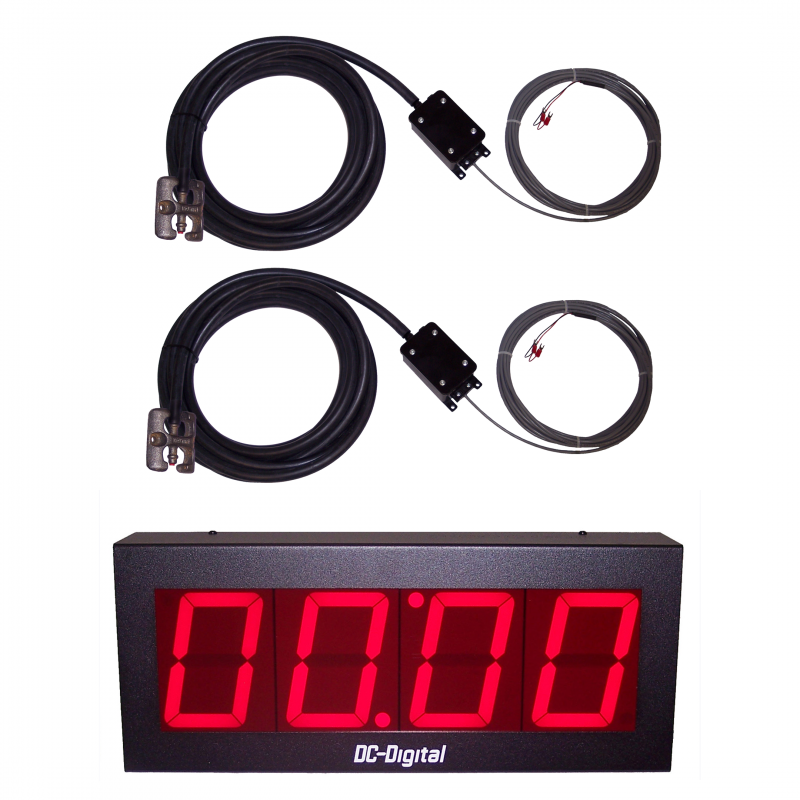

(DC-40T-UP-VEH) 4.0 Inch LED Digital, Pneumatic Switch Controlled, Count Up Timer-Clock (Vehicle Service Stations, Drive Throughs, Garages)

(DC-40T-UP-VEH) 4.0 Inch LED Digital, Pneumatic Switch Controlled, Count Up Timer-Clock (Vehicle Service Stations, Drive Throughs, Garages)

DC-Digital $857.95857.95 SKU# DC-40T-UP-VEH
Qty
DC-40T-UP-VEH (DC-40T-UP-VEH) 4.0 Inch LED Digital, Pneumatic Switch Controlled, Count Up Timer-Clock (Vehicle Service Stations, Drive Throughs, Garages) DC-Digital

More Details

• Counts up to 99 Hours from hundredths of a second (Shift Digit Technology)
• Internal terminal blocks for controls (Optional Network web page link allows you to view the days activity, 24 hour data log and current bay timing Network browser based web page link)
• (2) Pneumatic vehicle switches, 25 ft. of air tubing, switch box and anchor
• 200 Feet viewing distance
• Heavy duty 14 Ga. all aluminum enclosure
• Wide viewing angle, LED digits
• 1, 2.3, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your timing needs. Contact us

Tech Notes:
• Function: Counts up from hundredths of a second to 99 hours (Shift Digit Technology)
• Control activation: Terminal 1: Reset and Start, Terminal 2: Stop, Terminal 3: Not used, (now see the days activity, 24 hour data log and current timing activities via Network browser based web page link).
• Control activation type: (2) Pneumatic switches (1) for Reset and start (1) for Stop/Pause (see DC-PNEUMATIC)
Power: PS-12-700,120-240 VAC power wall adapter w/6ft. cord (included) or customer can supply 24 Vdc @ 500 mA power (terminal block connection)
Digit type: (4) Super bright, 7 segment, bar type, red LED 660nm
Number height, actual: 4 Inch / 101.6 mm
Viewing distance: 200 feet / 60.96 meters
Enclosure: Tough 14 Gauge aluminum, fingerprint resistant black powder coating (NEMA 4X enclosure available)
Dimensions: 16-1/4 inches wide x 6-3/4 inches tall x 3 inches deep
Mounting: 4 X 4 or 2 X 4 electrical rough in box, slotted teardrop knockout (see specification sheet 2D drawings), Handle and tripod mounting optional
Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click Here for the Installation Guide
