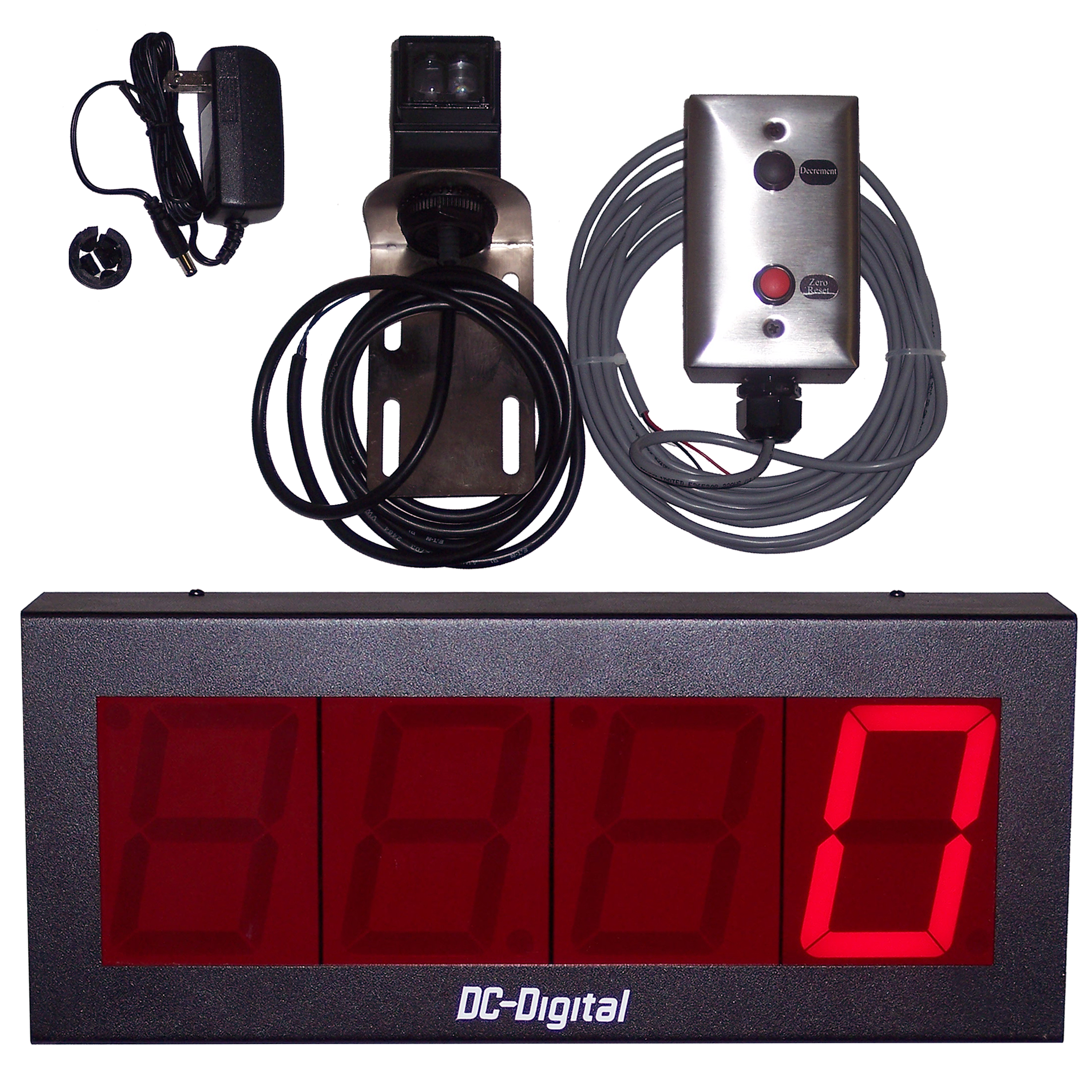

(DC-40C-PKG) 4.0 Inch LED Digital Counter, Diffused Reflective Sensor (10ft. Range) and Mount, and 2-Environmentally Sealed Push-Buttons with Junction Box and 25Ft. of Cabling (SW-RMSS-2-RED-BLK) "Ships FREE !"

(DC-40C-PKG) 4.0 Inch LED Digital Counter, Diffused Reflective Sensor (10ft. Range) and Mount, and 2-Environmentally Sealed Push-Buttons with Junction Box and 25Ft. of Cabling (SW-RMSS-2-RED-BLK) "Ships FREE !"

DC-Digital $690.95690.95 SKU# DC-40C-PKG
DC-40C-PKG (DC-40C-PKG) 4.0 Inch LED Digital Counter, Diffused Reflective Sensor (10ft. Range) and Mount, and 2-Environmentally Sealed Push-Buttons with Junction Box and 25Ft. of Cabling (SW-RMSS-2-RED-BLK) "Ships FREE !" DC-Digital

More Details


All-in-one LED digital counter package, everything you need, to count and display products, objects or items.
Included are:
- DC-40C-Term; 4 inch LED digital counter (industrial all aluminum enclosed 4.0 inch highly visible LED display, factory calibrated 10ms response time input).
- DC-IR-SENS-10-PNP; Diffused reflective sensor that is adjustable to 10 feet (includes mount).
- SW-RMSS-2-Red-Blk; Environmentally sealed remote controls for decrementing and resetting the count (box and 25ft. of cabling included).
All you need to do is mount, connect and power it up and start counting! Its USA made, and c
ustomizable to fit all of your counting needs: Contact us!

Tech Notes:
• Function: Counts up to 9999 by one's
• Control Function: Terminal 1: Increment (10mS response time), Terminal 2: Decrement, Terminal 3: Reset to Zero
• Control type: Increment (PNP source pulse from DC-DIFF-SENS-10), Decrement and Reset to Zero (momentary contact closures from SW-RMSS-2-RED-BLK)
• Control Connections: Internal terminal blocks
Display and Sensor Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord (included) or also accepts customer supplied 24 Vdc @ 200 mA power (terminal block connection)
• Digit type: (4) Super bright, 7 segment, bar type, red LED 660nm
• Number height, actual: 4 inches / 101.6 mm
• Viewing distance: 200 feet / 60.96 meters
• Enclosure: Tough 14 gauge aluminum, fingerprint resistant black powder coating (NEMA 4X enclosure available)
• Dimensions: 16-1/4 inches x 6-3/4 inches x 3 inches
• Mounting: 4 X 4 or 2 X 4 electrical rough in box, slotted tear drop knockout (see specification sheet 2D drawings), Handle and tripod mounting optional
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Specification sheet

Sensor:
• Function: Diffused reflective, adjustable for up to 10ft.
• Control activation: Outputs both PNP and NPN, once object has been sensed output is triggered and holds until object moves out of sensor range. Connects to terminal 1 (Typical)
• Power: 12VDC @ 10mA (Supplied by display)
• Mounting: Stainless bracket with (4) slotted .25" x 1.5" mounting holes and (1) Sensor mounting hole with nut
• Cabling: 6ft. wire whip pigtail, (4) 22ga. wires
• Additional cabling: 25ft. wire whip pigtail, (6) 22ga. wires, matches sensor wire colors
specification sheet

Typical sensor wiring diagram

Remote Reset Switch:
• Function: Decrement count and Resets the display to zero
• Control activation: Momentary contact closure. Connect to terminal 2 and 3
• Mounting: Wet location 2 x 4 junction box, stainless steel switch plate, environmentally sealed momentary switch
• Cabling: 25ft. wire whip pigtail, (2) 22ga. wires
