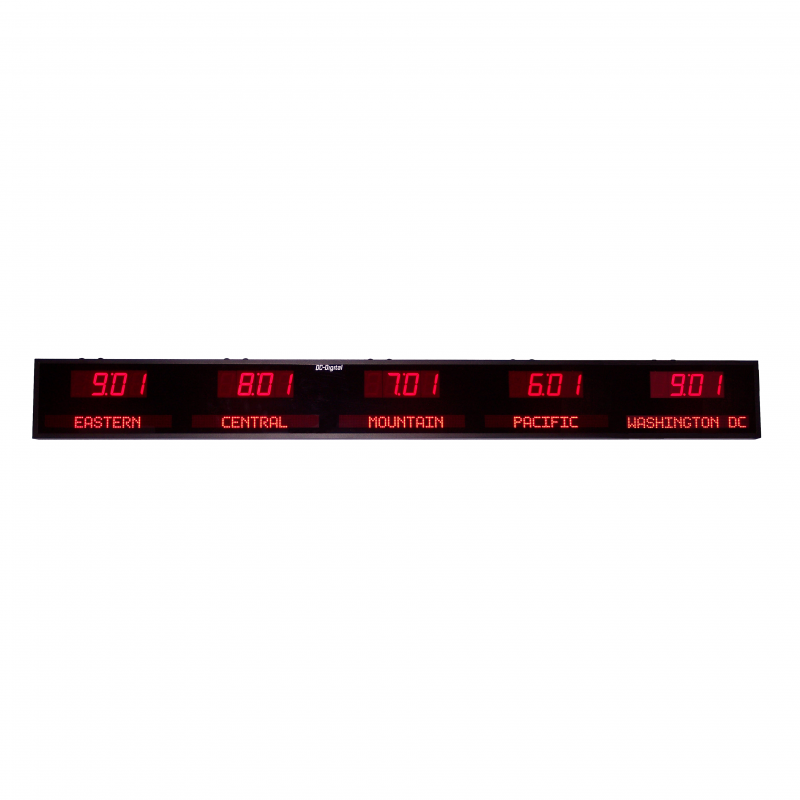

(DC-25TZ-5-CC) 5-Zone, Programmable Time Zone Lettering & Clocks

More Details

• Quickly change times and locales (captions)
• (5) 8 x 80 Dot Matrix, 13 character, self-centering displays
• 120 Feet viewing distance
• Heavy duty extruded aluminum enclosure
• Wide viewing angle, LED digits
• 4, 6, 8, 15 Inch LED Digit heights available
• Customizable to fit any of your timing needs: Contact-Us

Tech Notes:
• Function: 5 Time of day clocks and full matrix alphanumeric locale displays
• Control Operation: Each time zone has +1 and -1 hour set, sealed momentary push-button switches mounted on the top of the enclosure, 12 or 24 hour format is user select-able through software, hours, minutes and seconds are synchronized off of the master (master = farthest left clock)
• Control Type: Times and locales (captions) are changed through PC and software  via USB or serial cable (software included)
• Zone ID: 1.25 Inch 8 X 80 Dot Matrix Displays (13 Characters all caps)
• Power: 120-240 Vac power with grounded 6ft. 3-Prong power cord
• Number height Digits: 2.3 inches / 58.42mm
• Viewing distance: 120 feet / 36.5 Meters
• Enclosure: Extruded aluminum enclosure with tough finger print resistant black powder coating
• Dimensions: 58-3/4 inches wide x 8 inches tall x 2-1/4 inches deep
• Mounting: (2) slotted tear drop mounting tabs (see spec. sheet 2D drawings)
• Timing accuracy: Quartz accuracy (Factory calibrated) +/-2 minutes/year
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
