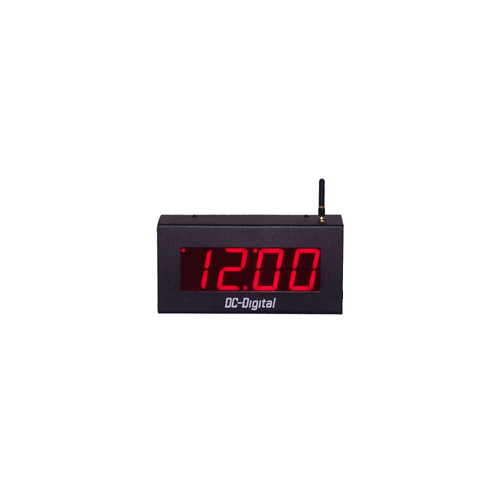

(DC-25N-W-Master) 2.3 Inch LED, Network NTP Server Synchronized, Web Page Configurable, Atomic Digital Time of Day Master Clock with Wireless 900Mhz Data Output to Synchronize DC-Digital Wireless Secondary Clocks

More Details

• Web page interface (see video)
• Plug and play attribute
• DHCP or Static IP programmable
• Synchronizes DC-Digital wireless secondary clocks
• Infinite range with store and forward wireless system secondaries
• 120 Feet viewing distance
• Heavy duty all aluminum enclosure
• Wide viewing angle, LED digits
• 1, 4, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your clock needs: Contact-Us

Tech Notes:
• Function: 12 or 24 hr, 4 time zone, (programmable through onboard web page) network sync master clock with wireless output: Synchronizes to network NTP server through Ethernet and then synchronizes secondary DC-Digital (W Type) time of day system clocks via wired connections. (WIFI optional)
• Control operations Input: RJ-45 connector Ethernet (WIFI optional), DHCP or Static IP, syncs from any NTP server (all user programmable through on board web page) (sends data correction signal every 10 seconds)
• Control operations Output:  RF wireless 900 Mhz, 250 mWatt, Frequency Hopping Radio with antenna will synchronize an infinite number of DC-Digital wireless clocks up to 350 feet range indoor (see store and forward system secondaries for infinite range capabilities) (2 pole internal terminal block connections for output wiring optional)
• Control type: NIST NTP server, DC-Digital NTP server ,customers NTP server (user programmable)
• Power: PS-12-700,120-240Vac power wall adapter w/6ft. cord (pigtails for 120 Vac optional)
• Digit type: (4) Super bright bar type 7 segment red LED 621nm
• Number height, actual: 2.3 inches / 58.42 mm
• Viewing distance: 120 feet / 36.5 Meters
• Enclosure: Aluminum with tough, fingerprint resistant black powder coating (NEMA 4X enclosure available)
• Dimensions: 9-3/4 inches wide x 4-3/4 inches tall x 3 inches deep
• Mounting: 4 X 4 or 2 X 4 electrical rough in box, slotted tear drop knockout (see specification sheet 2D drawings)
• Timing accuracy: Atomic; NTP server (factory calibrated quartz oscillator when free running to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Specifications Sheet
