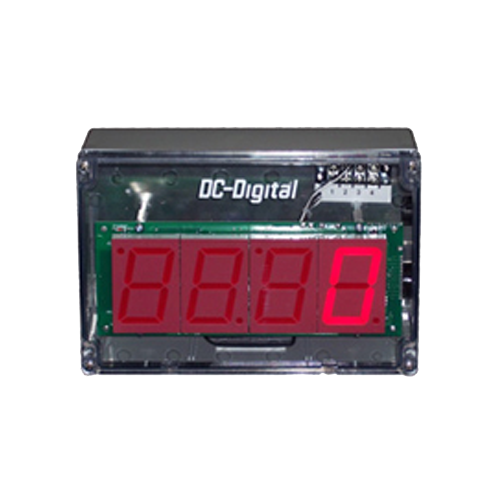

(DC-25C-Term-NEMA) 2.3 Inch LED Digital, Multi-Input, Nema 4X,6,6P,12,12K,13, IP-66 Enclosed, Counter that accepts: PLC, Relay, Switch and Sensor Input Controls

(DC-25C-Term-NEMA) 2.3 Inch LED Digital, Multi-Input, Nema 4X,6,6P,12,12K,13, IP-66 Enclosed, Counter that accepts: PLC, Relay, Switch and Sensor Input Controls

DC-Digital $295.95295.95 SKU# DC-25C-TERM-NEMA
Qty
DC-25C-TERM-NEMA (DC-25C-Term-NEMA) 2.3 Inch LED Digital, Multi-Input, Nema 4X,6,6P,12,12K,13, IP-66 Enclosed, Counter that accepts: PLC, Relay, Switch and Sensor Input Controls DC-Digital

More Details

• Counts and displays up by one's to 9999
• Nema 4X,6,6P,12,12K,13, IP-66 polycarbonate enclosure
• Accepts 3 types of external control inputs
• Terminal block connections
• High Intensity LED digits
• Hidden mounting points
• 1, 4, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your timing needs: Contact-Us

Tech Notes:
• Function: Counts up to 9999 by one's
• Control Function: Terminal 1: Increment, Terminal 2: Decrement, Terminal 3: Reset to Zero (10mS response time)
• Control type: Accepts 3 types of external control inputs: Momentary contact closure or 5-30VDC Pulse or PNP source pulse
Power: 120Vac-240Vac, 50-60Hz, 9ft of 16/3 (with Ground), SJE00W, Nema 5-15 power cord (internal terminal block connection optional)
Audible: Optional
Digit type: (4) Super bright bar type 7 segment red LED 621nm
Number height actual: 2.3 inches / 58.42 mm
Viewing distance: 120Ft. / 36.5 Meters
Enclosure: Nema 4X,6,6P,12,12K,13, IP-66 ratings polycarbonate UL flammability rating of UL94 VO @3mm, UV Stabilized (Can be used in conjunction with all DC-10 models)
Dimensions: 9-3/8 inches wide x 6-1/4 inches tall x 3-9/16 inches deep
Mounting: (4) through holes in the corners of the enclosure (see spec. sheet 2D drawings)
Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click here for control wiring instructions
Click Here for Specifications Sheet
