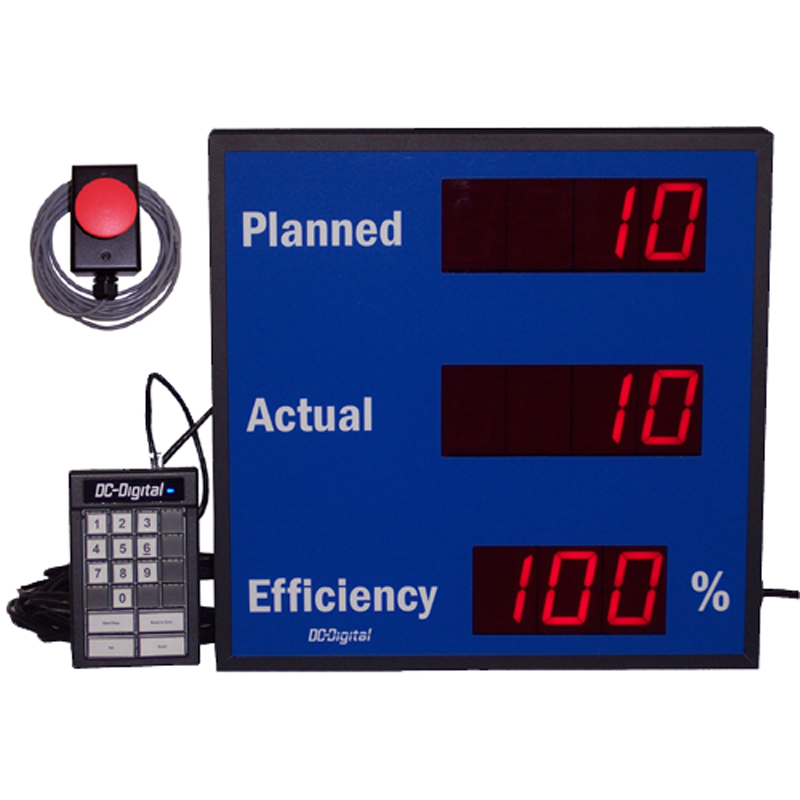

(DC-25C-2-EFF-KEY-PACE-RP) 2.3 Inch LED Digital Production Pace Efficiency Counter/Timer with 60mm Palm Switch for “Actual” Count Pace and 24 Keypad Input for Setting, Starting, and Pausing the “Planned” Count Pace (Measures Pieces per Second or Pieces per Minute or Seconds per Piece)

(DC-25C-2-EFF-KEY-PACE-RP) 2.3 Inch LED Digital Production Pace Efficiency Counter/Timer with 60mm Palm Switch for “Actual” Count Pace and 24 Keypad Input for Setting, Starting, and Pausing the “Planned” Count Pace (Measures Pieces per Second or Pieces per Minute or Seconds per Piece)

DC-Digital $1,058.951058.95 SKU# DC-25C-2-EFF-KEY-PACE-RP
Qty
DC-25C-2-EFF-KEY-PACE-RP (DC-25C-2-EFF-KEY-PACE-RP) 2.3 Inch LED Digital Production Pace Efficiency Counter/Timer with 60mm Palm Switch for “Actual” Count Pace and 24 Keypad Input for Setting, Starting, and Pausing the “Planned” Count Pace (Measures Pieces per Second or Pieces per Minute or Seconds per Piece) DC-Digital

More Details


• Tracks and displays production count, timed pace of production and efficiency
• Pace can be set up to 9999 seconds per unit
• Pace can be set up to 100 units per second
• Pace can be set up to 1000 units per minute

• "Actual" Count (includes heavy duty palm switch with cord)
•  Real time "Efficiency" (up to 200%)
•  24 Key-Keypad Programmer/controller
• Internal terminal blocks for programmer and controls
• High Intensity field replaceable LED digits
• Hidden mounting points
• 1, 4, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your counting needs: Contact-Us

Tech Notes:
Functions "Planned": Automatically increments 1 count per programmed number of seconds (up to 9999 seconds) and or counts the number of units produced per 1 second (100 units per second maximum)
• Functions "Actual": Increments up to 9999
Functions "Efficiency": Calculates and displays the percentage difference between the Actual and the Planned count, up to 200%
• Control operation "Planned": Wired (25ft. of cord with RJ-45 quick disconnect) 24-Key, Keypad programmer/controller. Instantly sets pace count timer in seconds (up to 9999 seconds) per piece, pieces per seconds (max. 100), pieces per minute (max. 1000), increments, decrements  the "Actual" count. Pauses pace timer
Control operation "Actual": High impact, heavy duty palm switch mounted in an electrical 2 x 4 weather resistant junction box and 25 ft. of cabling. Will also accept, NPN (common sink) or PNP (5-30VDC) from a relay, switch, sensor or PLC
Power: 120Vac-240Vac, 50-60Hz, @ 1 Amp, 3-Prong 6ft. power cord (24VDC operation optional)
Digit type: Super bright bar type 7 segment red LED 621nm
Number height actual: = 2.3 inches / 58.42 mm
Viewing distance: 120Ft. / 36.5 Meters
Enclosure: Aluminum, tough, fingerprint resistant, black powder coated
Labeling: Vinyl- blue color with white 1 inch lettering (other colors available)
Dimensions: 16 inches wide x 15.75 inches tall x 2.25 inches deep
Mounting: (2) Teardrop adjustable mounting tabs (see specification sheet 2D drawings)
Audible: Optional
Counting accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
