More Details
Note: Please identify the labeling for the cities or countries that will appear from left to right.
Enter them into the cart ordering instructions section.

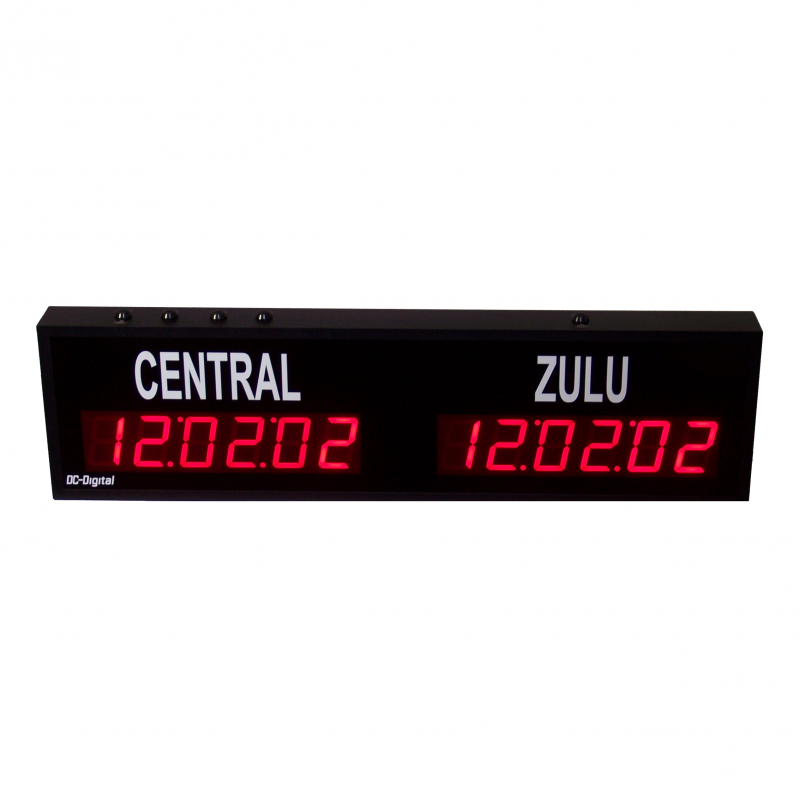

• 2-World time zones
• 2.3 Inch LED's Hours, Minutes and Seconds
• 2 Inch vinyl lettering (customer specific)
• Environmentally sealed momentary push-buttons
• 120 Feet viewing distance
• Heavy duty extruded aluminum enclosure
• Wide viewing angle, LED digits
• 4, 6, 8, 15 Inch LED Digit heights available
• Customizable to fit any of your timing needs: Contact us!
Tech Notes:
• Function: (2) synchronized time of day clocks, hours, minutes and seconds are synchronized off of the master (master= farthest left clock)
• Control type: Environmentally sealed momentary push-button switches mounted on the top of the enclosure
• Control Operation: Farthest left display only (set 12-24 hour format, set Hours, set Minutes , and set Seconds). Each time zone has set Hours and hold for 15 minute offset.
• Power: PS-12-700, 120-240Vac @ 700 mA power wall adapter w/6ft. cord
• Zones: 2 Inch static vinyl lettering for time zone locations are included (customer identification needed)
• Number height: 2.3 inches / 58.42mm
• Viewing distance: 120 feet / 36.5 Meters
• Enclosure: Extruded aluminum enclosure with tough fingerprint resistant black powder coating
• Dimensions: 28-1/2 inches wide x 7-7/8 inches tall x 2-1/4 inches deep
• Mounting: (4) slotted teardrop mounting tabs (see spec. sheet 2D drawings)
• Timing accuracy: Quartz accuracy (factory calibrated)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
