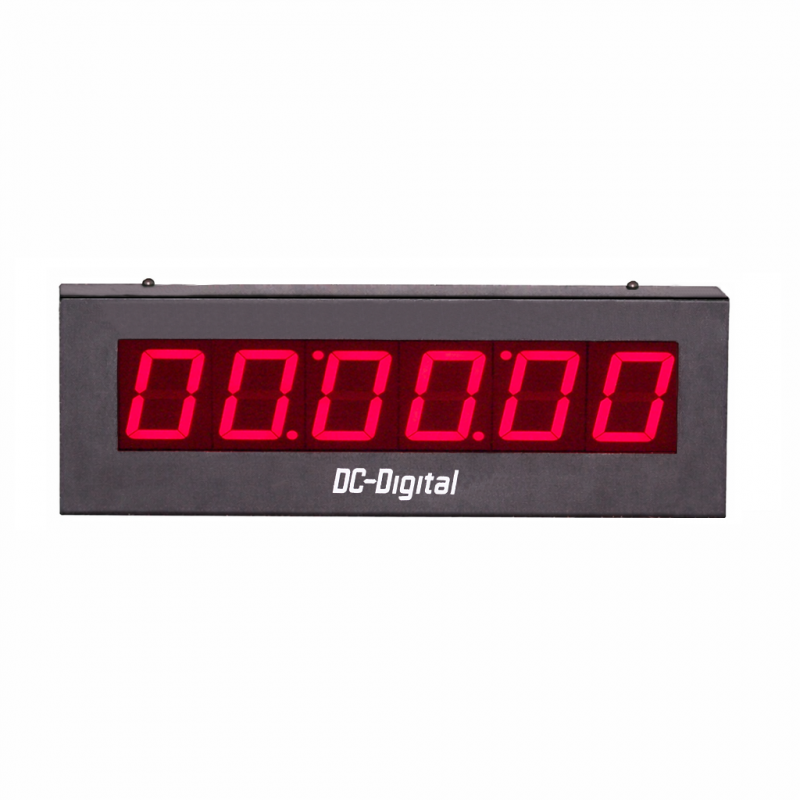

(DC-256T-UP-TERM) 2.3 Inch LED Digital, Multi-Input (PLC-Relay-Switch-Sensor) Controlled, Count Up Timer, Hours, Minutes, Seconds With Shift Digit Technology

(DC-256T-UP-TERM) 2.3 Inch LED Digital, Multi-Input (PLC-Relay-Switch-Sensor) Controlled, Count Up Timer, Hours, Minutes, Seconds With Shift Digit Technology

$354.95 $334.95$334.95 SKU# DC-256T-UP-TERM
Qty
DC-256T-UP-TERM (DC-256T-UP-TERM) 2.3 Inch LED Digital, Multi-Input (PLC-Relay-Switch-Sensor) Controlled, Count Up Timer, Hours, Minutes, Seconds With Shift Digit Technology Top Product Menu

More Details

• Multi-input controlled; PLC, Relay, Remote Push-button, PNP Sensor
Shift Digit Technology allows this timer to count up to 99 Hours from hundredths of a second
• Accepts 3 types of external control inputs

• 120 Feet viewing distance
• Heavy duty extruded aluminum enclosure
• Wide viewing angle, LED digits
• 1, 4, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your timing needs: Contact-Us

Tech Notes:
Functions: Counts up to 99:59:59 (Hours:Minutes:Seconds) from hundredths of a second
Control operations: 3 terminal connections for, Reset and Start, Start-Stop (pause), Reset to zero
Control Type: Accepts 3 types of external control inputs: Momentary contact closure, 5-30VDC Pulse or PNP source pulse
Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord (included) or will also accept customer supplied 24 Vdc @ 100 mA power (terminal block connection)
• Digit type:(6) Super bright red LED 660nm
• Number height, actual: 2.3 Inch / 58.42 mm
• Viewing distance: 120 feet / 36.5 Meters
 Enclosure: Extruded Aluminum with tough, fingerprint resistant black powder coating
Dimensions: 12-3/4 inches wide x 5-3/4 inches tall x 2-1/4 inches deep
• Mounting: (2) slotted teardrop mounting tabs (see spec. sheet 2D drawings), Handle and tripod mounting optional
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
