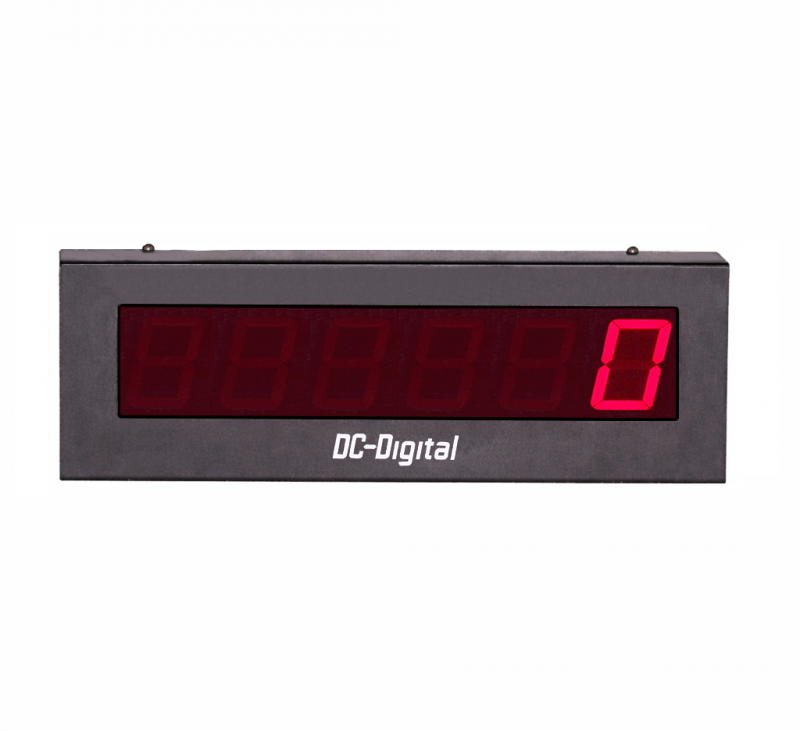

(DC-256C-Term) (6) Digit, 2.3 Inch LED Digital Multi-Input Counter that accepts: PLC, Relay, Switch and Sensor Input Controls

More Details

• Counts up to 999999 by one's
• Internal terminal blocks for easy connections
• 3 types of control inputs 5-30VDC Pulse, Contact closure or PNP
• 2 types of power supply sources 120 Vac or 24VDC
• Heavy duty 14 Ga. all aluminum enclosure
• Wide viewing angle, LED digits
• 1, 4, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your counting needs: Contact-Us

Tech Notes:
Replaces models: DC-25C-Term-24, DC-25C-Term-24P, and DC-25C-Term-24PI
• Function: Counts up to 999999 by one's
• Control Function: Terminal 1: Increment, Terminal 2: Decrement, Terminal 3: Reset to Zero
• Control type: Momentary contact closure or 5-30VDC Pulse or PNP source pulse. 10 ms pulse accuracy
• Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord (included) or customer can supply 24 Vdc @ 500 mA power (terminal block connection)
• Digit type: (6) Super bright, 7 segment, bar type, red LED 660nm
• Number height, actual: 2.3 inches / 58.42 mm
• Viewing distance: 120Ft. / 36.5 Meters
• Enclosure: Tough 14 gauge aluminum, fingerprint resistant black powder coating (NEMA 4X enclosure available)
• Dimensions: 12-3/4 inches wide x 5-3/4 inches tall x 2.25 inches deep
• Mounting: Adjustable slotted teardrop tabs or table mount (rubber feet provided)
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
