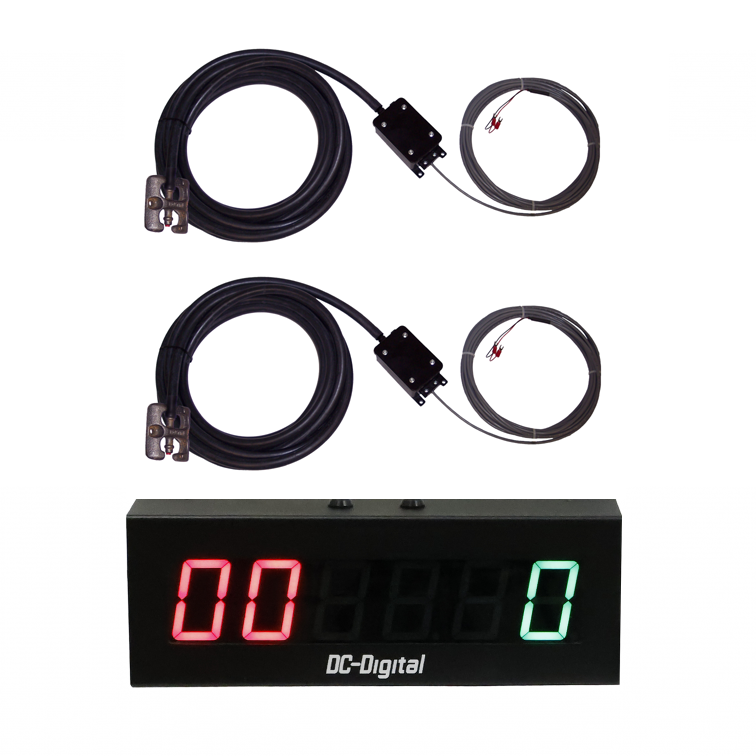

(DC-256C-T-UP-PNEUMATIC-PKG-DRIVE-THRU) Drive Thru Counter-Timer, 6 Digit (2 Red LED Digits for Timer Seconds & 4 Green LED Digits for Vehicle Counter) 2.3 Inch LED's, Counts Vehicles and Keeps Elapsed Wait Times, Includes: (2 DC-PNEUMATIC Air Activated Switches)

More Details

Video shows Drive Thru counter-timer with optional secondary display

This is a complete vehicle counter and timer package. It comes with all you need to set up, install and start counting and timing your vehicle drive thru service counts & wait times. It comes complete with our DC-PNEUMATIC air hose switch kits for starting the timer, incrementing the vehicle count and then stopping the timing process. It also comes with environmentally sealed top mounted push-buttons for manual timer stop and master reset to clear the days counts and timing. It comes in a heavy duty 14ga. all aluminum enclosure with 2.3 inch high LED digits, 6 digit display (2 red LED digits for seconds, for up to 99 seconds and 4 green LED digits for vehicle count, up to 9999). Fully assembled and factory calibrated electronics, and power supply (optional network web page link allows you to view the days activity and optional secondary display for additional viewing areas). All USA made! Need customization? Contact us

Tech Notes:
Display:
• Function: Counts up to 9999 vehicles and times up to 99 seconds per vehicle
• Control activation: Terminal 1: Start timer and increment counter (air switch 1), Terminal 2: Common, Terminal 3: Stop Timer (air switch 2)
• Control Input: Contact closure from pneumatic switches. Connects to terminal 1, 2, and 3
• Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord (included)
• Number height: 2.3 inches / 58.42mm
• Viewing distance: 120 feet / 36.5 Meters
• Enclosure: Powder coated 14 gauge aluminum enclosure (NEMA 4X enclosure available)
• Mounting: 4 X 4 or 2 X 4 electrical rough in box, slotted tear drop knockout (see specification sheet 2D drawings)
• Dimensions: 12-3/4 inches wide x 4-3/4 inches tall x 3 inches deep
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
See also DC-PNEUMATIC air switches
