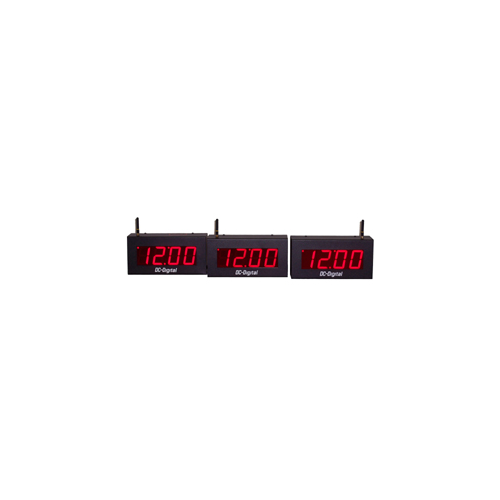

(DC-25-W-Wireless-Range-Test-Kit) For Facility Testing DC-Digital Wireless Synchronized System Displays (Test kit)
DC-Digital $500.00500.00 SKU# DC-25-W-Wireless-Range-Test-KitMore Details
• Used for range testing a facility for DC-Digital wireless timer, counter, clock and number display synchronized systems• Easy to setup and use
• Consists of 1 wireless Master system clock and 1 wireless Secondary system clock
• Store n Forward clocks technology
• Call us today! Contact-Us
Tech Notes:
• Function: This is a wireless clock system in its simplest form, designed to be used for testing environments for placement of wireless system DC-Digital products.
• Control operations Master: Set Hours, Set Minutes
• Control operations Secondary: Synchronizes to time data stamp from DC-Digital wireless master clock or another DC-Digital wireless secondary system clock, and re-transmits the time of day time stamp (Store and forward technology)
• Control type Master: Momentary push-buttons mounted on the top of the enclosure (input). RF wireless 900 Mhz, 250 mWatt, Frequency Hopping Radio (Output), time stamp data
• Control type Secondary: RF wireless 900 Mhz, 250 mWatt, Frequency Hopping Radio. Carries data for time stamp synchronization.
• Power: PS-12-700,120-240Vac power wall adapter w/6ft. cord (pigtails for 120 Vac optional)
• Digit type: (4) Super bright bar type 7 segment red LED 621nm
• Number height, actual: 2.3 inches / 58.42 mm
• Viewing distance: 120 feet / 36.5 Meters
• Enclosure: Aluminum with tough, finger print resistant black powder coating (NEMA 4X enclosure available)
• Dimensions: 9-3/4 inches wide x 4-3/4 inches tall x 3 inches deep
• Mounting: 4 X 4 or 2 X 4 electrical rough in box, slotted tear drop knockout (see specification sheet 2D drawings)
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click here for Specifications
