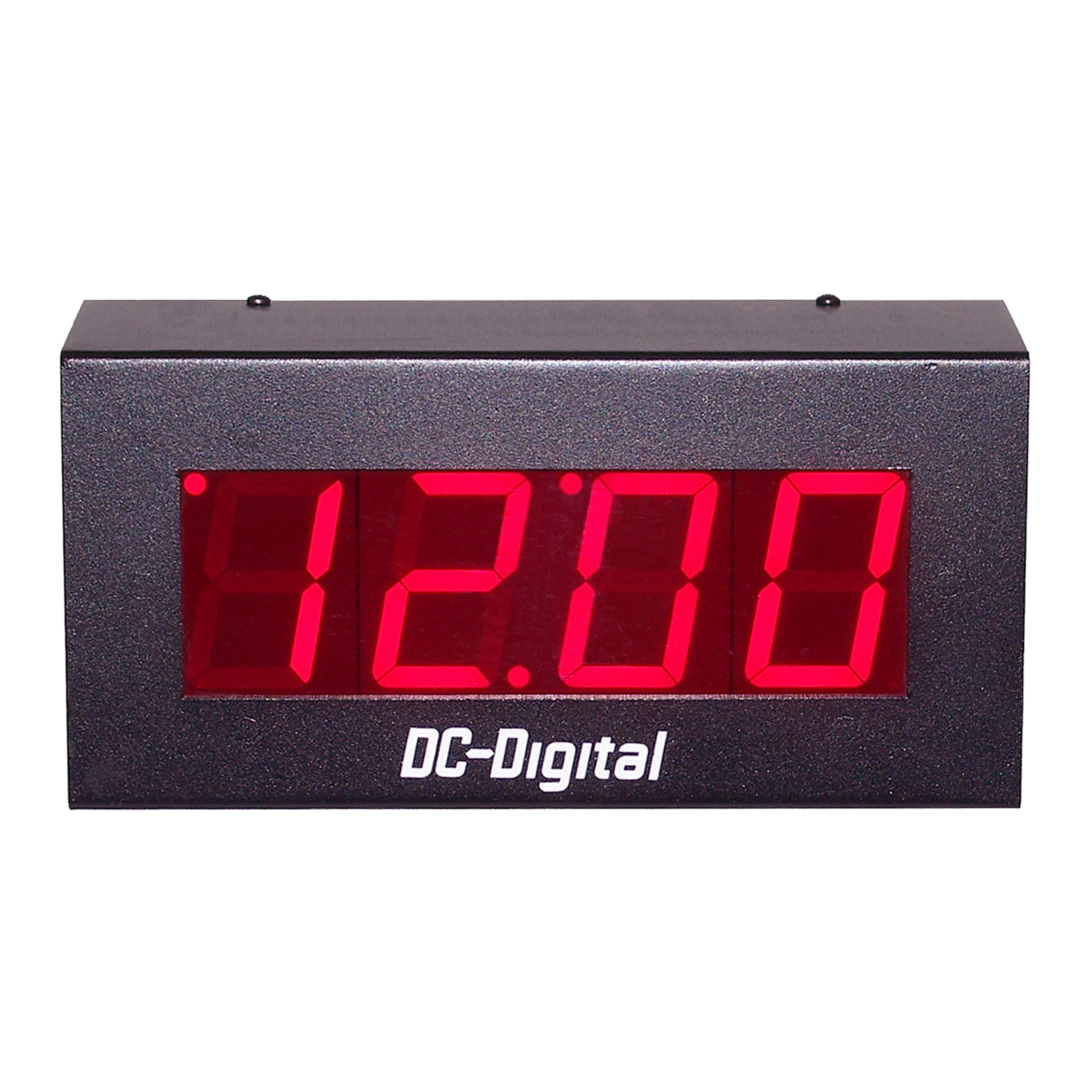

(DC-25-4W-System) 4-Wire Sync. System, Digital Clock, 2.3 Inch Digits

More Details

• 22-Gauge Data wiring
• 120 Feet viewing distance
• Heavy duty 14 Ga. all aluminum enclosure
• Wide viewing angle, LED digits
• 1, 2.3, 6, 8, 15, 30 Inch LED Digit heights available
• Customizable to fit any of your clock needs: Contact-Us

Tech Notes:
• Function: Master clock with CM-1 required: Time of day secondary system clock (12-24 Hour) that synchronizes on 2-wires
• Control operations: Synchronizes exactly to connected Master Clock
• Control type: 9600 baud 8N1 Ascii code sent over the 2 data wires (2) 22 Gauge data pigtail wires out of the back of the enclosure
• Power: PS-12-500,120-240 Vac power wall adapter w/6ft. cord (120 Vac internal power supply with pigtails optional)
• Digit type: (4) Super bright bar type 7 segment red LED 621nm
• Number height: 2.3 inches / 58.42 mm
• Viewing distance: 120 feet / 36.5 Meters
• Enclosure: Powder coated 14 gauge all aluminum enclosure
• Dimensions: 9-3/4 inches wide x 4-3/4 inches tall x 3 inches deep
• Mounting: 4 X 4 or 2 X 4 electrical rough in box, slotted tear drop knockout (see specification sheet 2D drawings)
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click Here for Specifications Sheet
