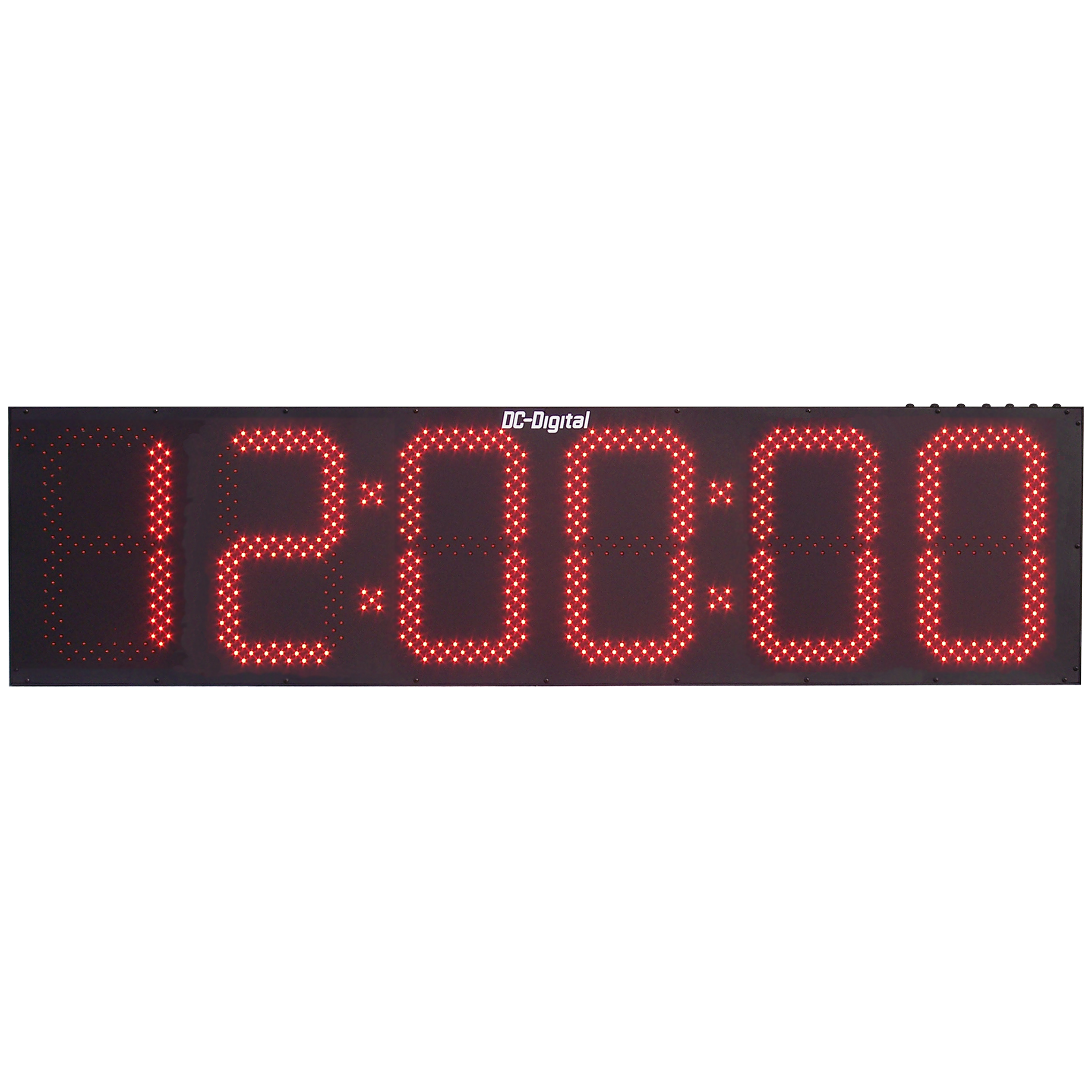

(DC-156UT-IN) 15.0 Inch LED, Push-Button Controlled, Count Up, Countdown Timer, Time-of-Day Clock, Hours, Minutes, Seconds (INDOOR)

(DC-156UT-IN) 15.0 Inch LED, Push-Button Controlled, Count Up, Countdown Timer, Time-of-Day Clock, Hours, Minutes, Seconds (INDOOR)

DC-Digital $2,109.952109.95 SKU# DC-156UT-IN
Qty
DC-156UT-IN (DC-156UT-IN) 15.0 Inch LED, Push-Button Controlled, Count Up, Countdown Timer, Time-of-Day Clock, Hours, Minutes, Seconds (INDOOR) DC-Digital

More Details

• Counts up to 99 hours; Hours, Minutes and Seconds
• Counts down from 99 hours; Hours, Minutes and Seconds
• keeps time of day
• Heavy duty all aluminum enclosure
• 750 Feet viewing distance
• High intensity, wide viewing angle, sunlight resistant LED digits
• 1, 2.3, 4, 8, 30 Inch LED Digit heights available
• Customizable to fit any of your timing needs: Contact-Us

Tech Notes:
• Functions:  1) Counts up to 99 hours (displays hours, minutes and seconds). 2) Countdown from as much as 99 hours (displays hours, minutes and seconds). 3) Time of day (12hr format)(displays hours, minutes and seconds)
• Control operation: Clock/Timer, UP/Down, Start-Stop, Reset to Last Value, Reset to Zero, Set Hours, Set Minutes and Set Seconds
• Control type: Environmentally sealed momentary push-button switches
• Power: 120-240Vac, 50/60Hz, @ 4 amps, 3 Prong 6 ft. Power cord (Junction box with pigtails for 100-240VAC, 50/60Hz, @ 4 amps with ground optional)
• Digit type: (6) x 7 Segments made up of individual 5mm oval, 110 x 40 degree viewing angle, 1100 mcd sunlight resistant red LED 621nm
• Number height: 15 inches / 381mm
• Viewing distance: 750 feet / 228.6 Meters
• Enclosure: Tough extruded all aluminum, finger print resistant, black powder coat
 Dimensions: 72 inches wide x 18-1/4 inches tall x 3-1/4 inches deep
• Mounting: (2) slotted tear drop mounting tabs (see spec. sheet 2D drawings) Tripod mounting optional
• Audible: Optional
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year
