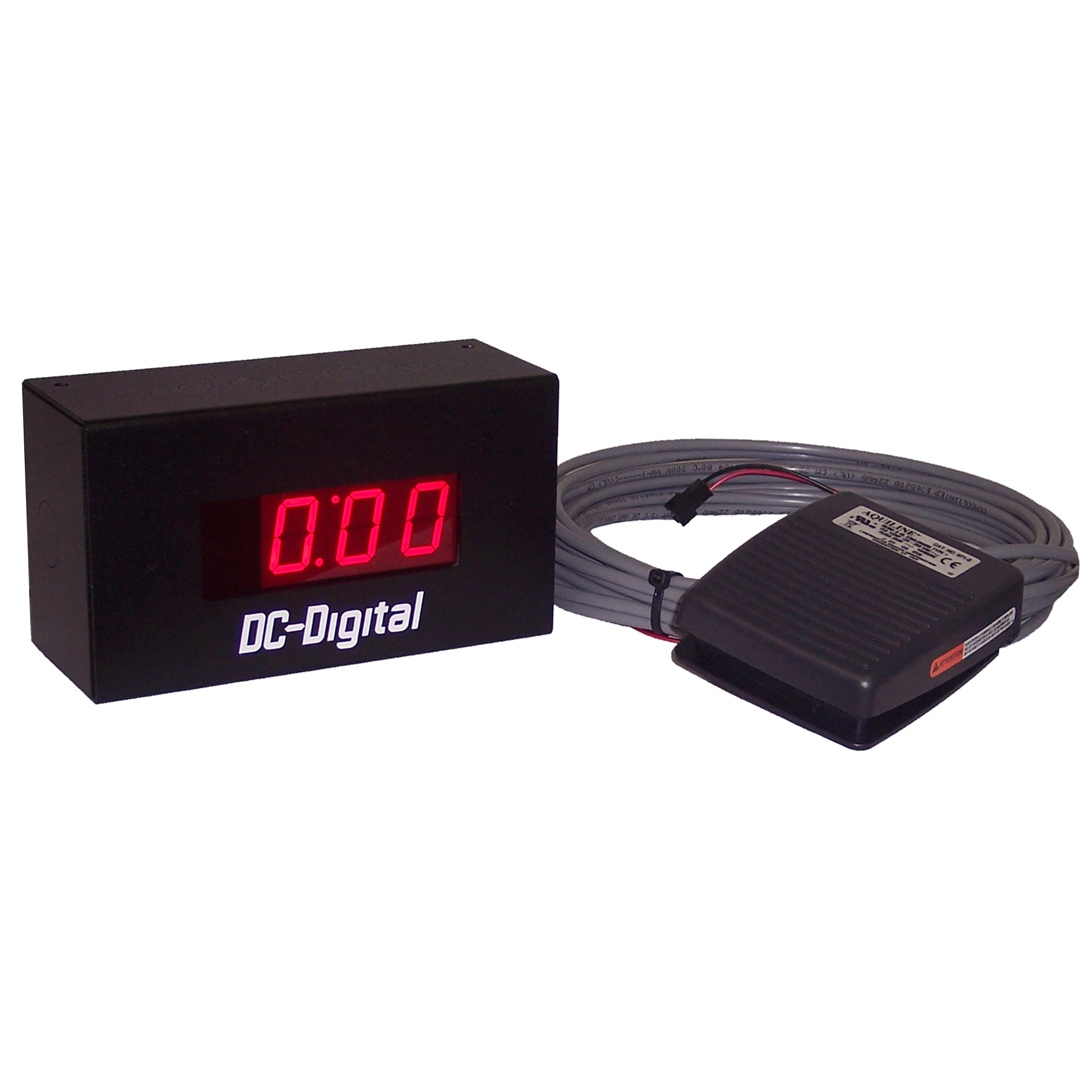

(DC-10T-DN-Hand-Foot) Foot Switch Activated Hand Washing Countdown Timer, IP-66 Aluminum Enclosure, 1 Inch Digits

$197.95
SKU# DC-10T-DN-Hand-Foot
Qty
Share on Facebook

• Works with any faucet type
• "Hands Free" foot switch activation

• IP-66 All aluminum  enclosure
• Counts down from preset values (user dip-switch select-able)
• Fully lit display for perfect viewing of time remaining
• Customizable to fit any of your timing needs: Contact-Us

Tech Notes:
Functions: Counts down from preset values. Use any combination of 4, 2, 1, Minutes, 30, 15, 5 Seconds, Example: Switch "ON" the 15 and 5 seconds for 20 seconds countdown time. NOTE: Factory set default is 20 seconds
Control operations: Foot switch press momentary or constant
Control type: Foot switch
Power: PS-12-700,120-240 Vac power U.L listed wall adapter w/6ft. cord (included) (25 ft extension cable available)
Audible: 3 Second end of period tone
Digit type: (3) Super bright bar type 7 segment red LED 621nm
Number height actual: 1 inch / 25.5mm
Viewing distance: 25 feet / 7.62 Meters
Enclosure: IP-66 All aluminum
Dimensions: 6-3/4 inches wide x 3-3/4 inches high x 2 inches deep
Mounting: (2) Slotted teardrop K.O.'s
Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
