(DC-10T-DN-BCD-PKG-SHRT) 1.0 Inch LED Digital, BCD Rotary Switch Set, Diffused Reflective Sensor Input Controlled (1-10 Inch Range) with Mount and Wired Remote Zero Reset Switch Countdown Timer Package "Ships FREE !"

More Details

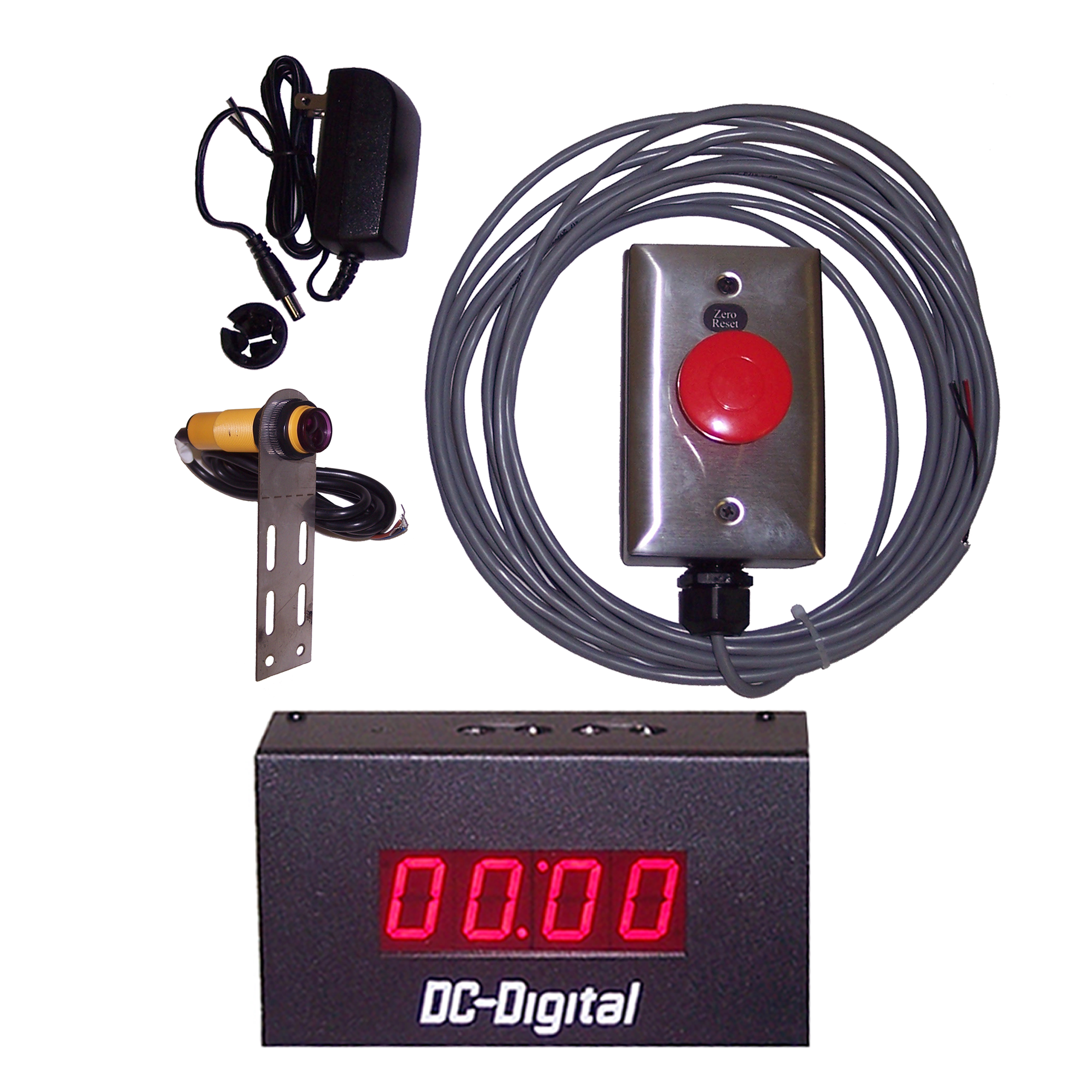

This is a complete count down timer package system. It comes with all you need to setup, install and start timing any process that requires single process time. Heavy duty 14ga. all aluminum enclosing a 1 inch high, 4 digit display. Fully assembled and factory calibrated electronics, diffused reflective sensor adjustable to 10 inch range, reset to zero switch, cabling, mounts, cabling restraint and power supply. All USA made! Need customization? Contact-Us

Tech Notes:
Display:
• Function: Counts up from hundredths of a second to 99 hours
• Control activation: Terminal 1: Start/Pause, Terminal 2: Reset to Set Value, Terminal 3: Reset to Set Value and Start
• Control Input Sensor: PNP sourced, triggers once object is sensed and maintains until object is moved. Connects to terminal 1
• Control Input Reset Switch: Momentary contact closure to reset to zero. Note: will not reset if sensor is outputting. Connects to terminal 2
• End of period: Display flashes 1/2 second ON, 1/2 second OFF once 00:00 (end of period has been reached (optional end of period indicators: flashing count up overage time, ANDON light, tone, relay outputs)
• Digit type: (4) Super bright, 7 segment, bar type, red LED 660nm
• Number height, actual: 1 Inch / 25.5mm
• Viewing distance: 25 feet / 7.62 Meters
• Enclosure: Tough 14 Gauge aluminum, fingerprint resistant black powder coating (NEMA 4X enclosure available)
• Dimensions: 6-3/4 inches wide x 3-3/4 inches tall x 2 inches deep
• Mounting: (2) Slotted teardrop K.O.'s (see spec. sheet 2D drawings)
• Power: PS-12-700,120-240 Vac power wall adapter w/6ft. cord (included) or will also accept customer supplied 24 Vdc @ 100 mA power (terminal block connection)
• Timing accuracy: Quartz (factory calibrated to +/- .0005 pps, @ 10Mhz)
• Manufacturer: DC-Digital, Made in the USA
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click Here for Specifications Sheet

Sensor:
• Function: Diffused reflective, adjustable for up to 10 inches
• Control activation: Outputs both PNP and NPN, once object has been sensed output is triggered and holds until object moves out of sensor range. Connects to terminal 1 (Typical)
• Power: 12VDC @ 10mA (Supplied by display)
• Mounting: Stainless bracket with (4) slotted .25" x 1.5" mounting holes and (1) Sensor mounting hole with nut
• Cabling: 6ft. wire whip pigtail, (4) 22ga. wires
• Additional cabling: 25ft. wire whip pigtail, (6) 22ga. wires, matches sensor wire colors
Click here for specifications

Remote Reset Switch:
• Function: Resets the display to zero
• Control activation: Momentary contact closure. Connect to terminal 2
• Mounting: Wet location 2 x 4 junction box, stainless steel switch plate, heavy duty 40mm palm switch
• Cabling: 25ft. wire whip pigtail, (2) 22ga. wires
