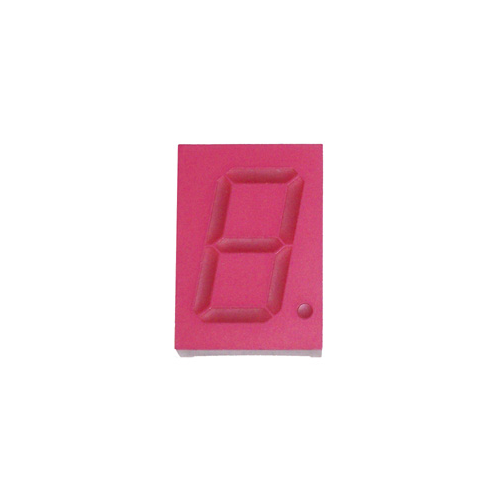

(DC-10-Display) 7 Segment High Intensity Red LED Display, 1.0 Inch, Common Cathode

(DC-10-Display) 7 Segment High Intensity Red LED Display, 1.0 Inch, Common Cathode

DC-Digital $11.9511.95 SKU# DC-10-Display
Qty
DC-10-Display (DC-10-Display) 7 Segment High Intensity Red LED Display, 1.0 Inch, Common Cathode DC-Digital

More Details

• Red LED with Red Lens and Red face
• 25 feet viewing distance
• Totally encapsulated

Tech Notes:
Function: LED (Light emitting Diode) used in DC-10 indoor timers, counters and displays
Control operation: Common cathode, directly driven or can be multiplexed
Control type: 10 Pins (solder tail)
Power: FV per segment 3.6 V (typical), DP 1.8 V (typical) @ 30mA
LED type: Super bright red LED 660nm, 60-75 Mcd (typical) (red lens with red face) encapsulated
Number height, actual: 1 inch / 25.5mm
Viewing distance: 50 feet / 15.24 Meters
Type: Common Cathode
• Warranty: 1 Year (optional extended warranty plan @ checkout)
Click here for Specification Sheet
