Fire Alarm Drill Countdown Timer with Additional ANDON Light Indication and Relay Output

Fire alarm, countdown Timer, with momentary continuous system, Andon light, and Start of period and end of Period relay system.
Timers

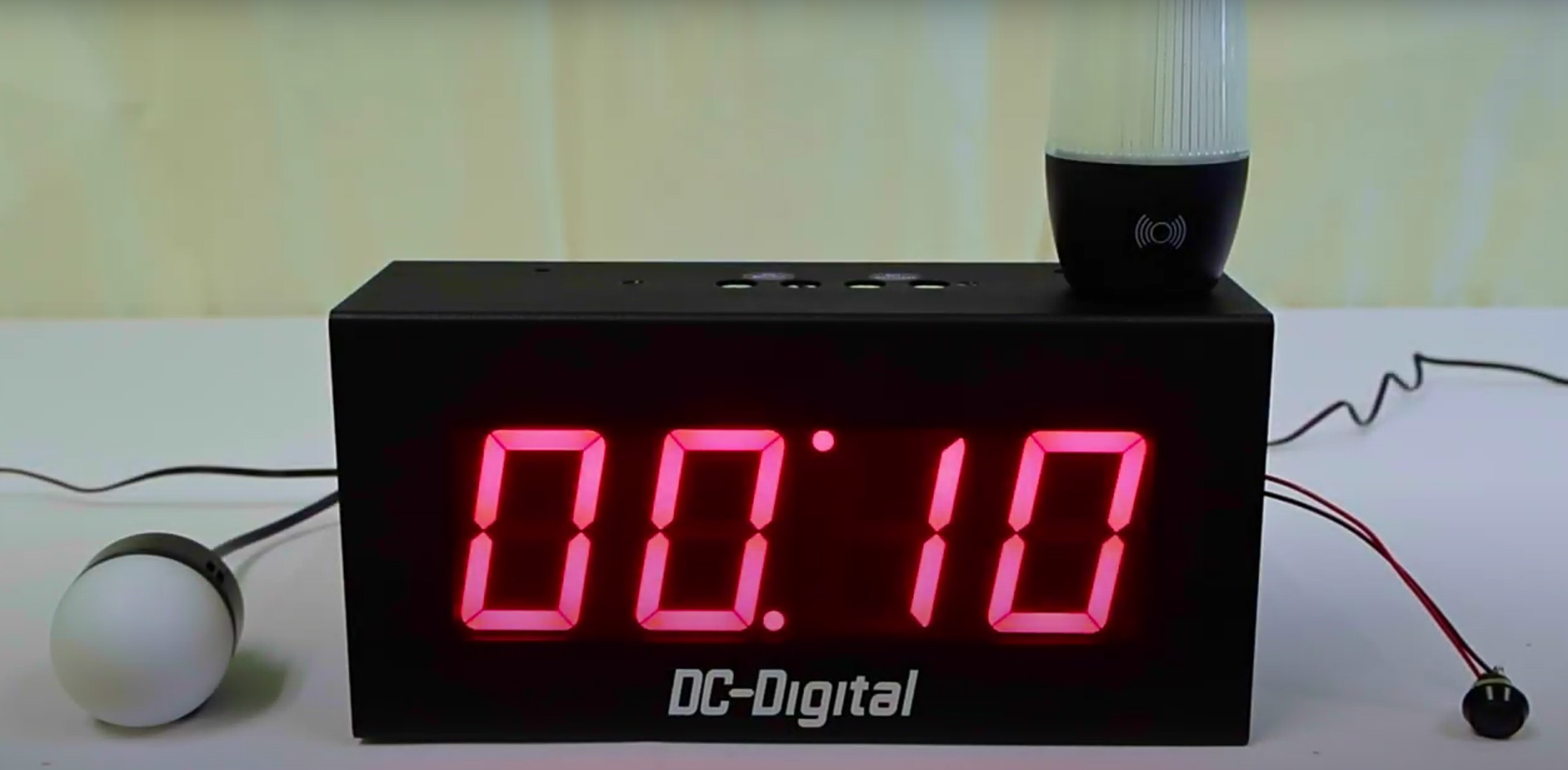

The DC-25T-DN-BCD-ANDON countdown timer is a rugged, high-visibility, precision-timed solution designed for fire alarm drills, safety protocols, process control, and other time-sensitive industrial applications.

Key Features & Operation:

  • Power Source: Operates efficiently on a 24V DC power supply, which can be provided by the customer.
  • Easy Time Setting: Quickly set your countdown time (up to 99 minutes and 59 seconds) using the BCD rotary switches located conveniently on top of the enclosure. Simply dial in the minutes and seconds — no programming required, and no batteries for set time retention.
  • Countdown Activation: The timer is activated using a continuous closed switch. Once the switch is opened the countdown ceases and the timer resets to the previously BCD set value.
  • Visual & Audible Alerts:
    • At countdown start:
      • The red ANDON light (mounted on the upper right of the enclosure) begins to flash.
      • A buzzer sounds for 3 seconds, signaling the beginning of the countdown.
      • Relay output activation also for 3 seconds
    • During the countdown:
      • The red light continues flashing for high-visibility awareness.
    • At countdown completion:
      • The ANDON light turns off.
      • The end-of-period relay activates for 3 seconds.
      • A final buzzer sounds after 3 seconds, clearly marking the end of the cycle.

Construction & Display:

  • Durable Design: Housed in a black powder-coated aluminum enclosure that is both dust and fingerprint resistant, perfect for industrial environments.
  • High Visibility: Equipped with a 2.3-inch digit display viewable from up to 120 feet away, ensuring easy readability from across a large facility or workspace.
  • Mounting Options: Comes with rubber feet for stable desktop placement — no complicated setup required.

Included Accessories:

  • Multi-colored ANDON light, with red flashing alert during active countdown mode.

If you’re looking for a robust, reliable, and easy-to-use countdown timer with clear audio-visual signals for industrial or safety-critical applications, the DC-25T-DN-BCD-ANDON is the perfect choice.

Like, comment, and subscribe for more product demos and updates.

Have questions about integration or custom solutions? Drop them in the comments below or contact us directly.

Watch tutorial video on YouTube
